Flanged Locking Inlet, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White MPN:HBL4716C

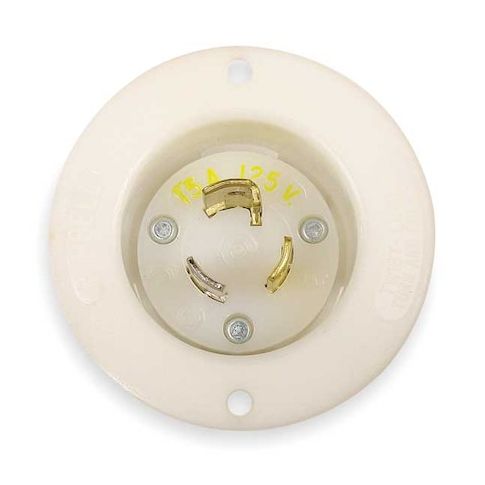

• The HUBBELL 15A Flanged Twist-Lock Inlet (L5-15P WT) is a locking inlet rated for use in indoor dry locations. This flanged, flush-mount device features a twist-lock mechanism with a 2-pole, 3-wire configuration and is rated for 125V AC at 15 amps. Thermoplastic housing and nylon flange.





  Key Features of the HUBBELL - 15A Flanged Twist-Lock Inlet:





  • Amperage/Voltage: Rated for 15 A, 125V AC single-phase operation


  • NEMA Configuration: L5-15P twist-lock design with grounded connection


  • Material Construction: Thermoplastic housing and natural white nylon flange


  • Mounting Type: Flush mount with included mounting screws
  • flanged design for panel installation


  • Wire Accommodation: Accepts #18–#10 AWG solid or stranded copper wire via screw terminals (backwired)


  • Screw Terminals: Multiple drive terminal screws accept slotted, Phillips, and Robertson drivers


  • Operating Temperature Range: Maximum continuous temperature of 75°C
  • minimum -40°C without impact


  • NEMA Enclosure Rating/IP Rating: NEMA Type 12 & 4X. Suitable for indoor dry conditions


  • Certifications/Standards: UL Listed (UL498), CSA C22.2 No.42 certified, Federal Specification W-C-596 compliant
