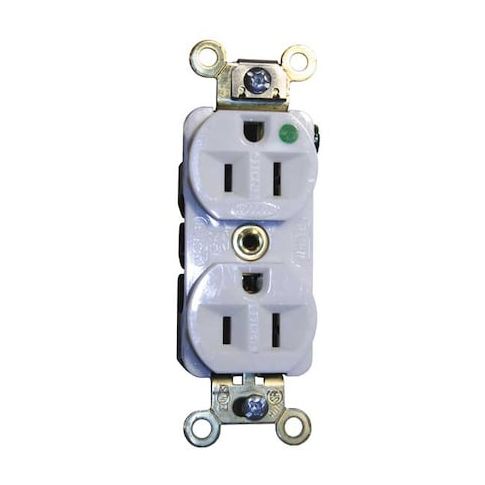

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8200ILW
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle is a reliable and durable electrical outlet designed for demanding environments such as hospitals, offices, and commercial spaces. Rated for 15 A at 125 V AC, this hospital-grade receptacle features a polycarbonate face with finder groove and supports both back and side wired screw terminal connections. With a four-point grounding system and nickel-plated brass contacts, it ensures safe and efficient power distribution. Suitable for indoor use in dry locations, this receptacle is perfect for areas with high foot traffic, and its illumination feature provides clear visibility in dark spaces.
Top product features:
- Supports both back and side wired screw terminal connections, accommodating #14 to #10 AWG copper wire.
- Features a four-point grounding system for redundant ground continuity.
- Includes two LEDs that illuminate the device.
Top product applications:
- Hospital settings
- Industrial settings
- Marine environments
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a traditional duplex electrical outlet rated as Hospital Grade and suitable for use in demanding environments. It features a polycarbonate face with finder groove and is rated for indoor use in dry locations. The receptacle supports both back and side wired screw terminal connections, accommodating #14 to #10 AWG copper wire, and includes product identification markings indicating ratings as part of the device.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Amperage/Voltage: Rated for 15 A at 125 V AC
- NEMA Configuration: 5-15R, standard duplex outlet
- Grade: Hospital Grade Fed. Spec., intended for use in demanding environments
- Contact Material: Nickel-plated brass contacts
- Grounding: Four-point grounding system offers redundant ground continuity
- Impact Resistance: Deep polycarbonate face with finder groove
- Wiring Method: Back and side wired screw terminals support stranded or solid copper wire (#14–#10 AWG)
- Operating Temperature Range: -40°C (w/o impact) to +75°C continuous operation
- Illumination Feature: Equipped with two LEDs that illuminate the device
- Certifications/Standards: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6 compliant, UL Listed to UL498 File E2186
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 9.30
- Package Height: 4.40
- Package Weight: 2.35
