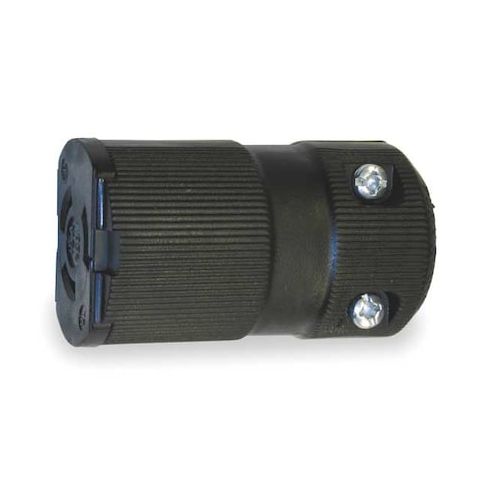

Locking Connector, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black MPN:HBL4729VBK

• The HUBBELL 15A Midget Locking Connector (L5-15R) is a locking connector rated for use in indoor dry locations. It features a nylon body with insulation, impact resistance, and crush resistance.





  Key Features of the HUBBELL 15A Midget Locking Connector:





  • Amperage/Voltage Rating: Rated for 15 A at 125V AC single phase


  • NEMA Configuration: L5-15R, grounded, with two poles and three wires


  • Cable Range: Accepts cable diameters between 0.220" and 0.660"


  • Body Material: Nylon housing provides insulation as well as impact and crush resistance


  • Contact Material: Brass contacts


  • Screw Terminals: Two captive multiple drive assembly screws simplify installation


  • Dielectric Strength: Withstands minimum of 2,000V dielectric voltage


  • Temperature Rating: Operates continuously up to 75°C
  • minimum -40°C without impact


  • Flame Resistance & IP Rating: HB or better per UL94
  • IP20 rated for indoor use only unless further protected


  • Standards Compliance: Certified to CSA C22.2 No.42, Fed.Spec W-C-596, listed to UL498
  • terminals identified per UL498 requirements
