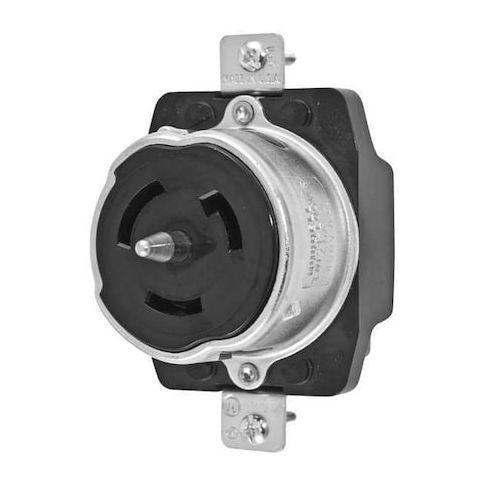

Locking Receptacle, Non-NEMA, 50 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:CS8469
Free Shipping
In Stock
The HUBBELL 50A Twist-Lock Receptacle is a reliable and secure industrial locking receptacle designed for a variety of applications, including electrical connections in harsh environments. Its twist-lock mechanism prevents accidental disconnection, ensuring safe and efficient operation. Rated for 50 amps at 480V AC, single phase, this receptacle is ideal for use in industrial settings, such as manufacturing facilities, warehouses, and construction sites. With its flush mount design and screw terminals accommodating #10 to #6 AWG wire, this receptacle offers streamlined installation and easy maintenance, making it a valuable addition to any industrial electrical system.
Top product features:
- Twist-lock mechanism to prevent accidental disconnection
- Accommodates #10 AWG to #6 AWG solid or stranded copper wire via screw terminals
- Flush mount design for streamlined installation
Top product applications:
- Industrial electrical connections in various environments
- Electrical connections in factories and manufacturing facilities
- Heavy-duty machinery and equipment installations
The HUBBELL 50A Twist-Lock Receptacle is an industrial locking receptacle intended for electrical connections in various environments. It includes a twist-lock mechanism to prevent accidental disconnection and is rated for 50 amps at 480V AC, single phase. The device accommodates #10 AWG to #6 AWG solid or stranded copper wire and mounts flush for streamlined installation.
Key Features of the HUBBELL 50A Twist-Lock Receptacle:
- Amperage/Voltage: Rated for 50 A, 480V AC single phase applications
- Poles/Wires: 2-pole, 3-wire configuration with grounding
- Construction: Black thermoset base with impact-modified PBT housing
- shrouded design enhances durability
- Contact Material: brass contacts
- NEMA/Enclosure Rating: Non-NEMA configuration
- NEMA enclosure ratings of 4, 4X, and 12 suitable for indoor dry locations unless protected by additional means
- Mounting Type: Flush mount with screw mounting hardware included
- Cable Accommodation: Accepts #10–#6 AWG solid or stranded copper wire via screw terminals
- Temperature Range: Operates from -40°C to +75°C (maximum continuous), maximum operating temperature of up to 167°F (75°C)
- Flammability & Standards: UL94 V-0 flammability rating
- certified to CSA C22.2 No.42 and listed to UL498 standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 2.60
- Package Height: 3.80
- Package Weight: 0.74
