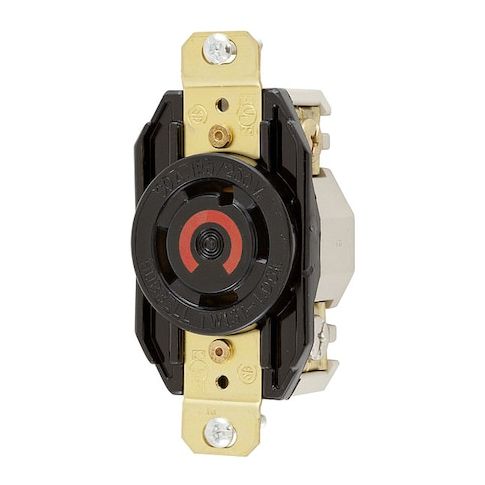

Locking Receptacle, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Screw Terminals MPN:HBL2710
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Receptacle L14-30R is a reliable and secure locking receptacle designed for industrial applications where a dependable electrical connection is crucial. Its twist-lock mechanism reduces the risk of accidental disconnection, ensuring a safe and efficient power supply. Suitable for single-phase, 3-pole, 4-wire configurations at 125/250V AC, this receptacle is ideal for use in settings such as manufacturing facilities, warehouses, and construction sites. Its durable construction and all-brass mounting system enhance corrosion resistance, making it a reliable choice for harsh environments.
Top product features:
- The device includes a twist-lock mechanism intended to reduce the likelihood of accidental disconnection.
- The device is constructed with nylon housing and brass contacts, enhancing corrosion resistance.
- The device accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals, reducing terminal loosening risk.
Top product applications:
- Industrial Electrical Panel
- Heavy-Duty Machinery Installation
- Remote Outdoor Power Distribution
The HUBBELL 30A Twist-Lock Receptacle L14-30R is a locking receptacle rated for use in industrial applications where a secure electrical connection is needed. It includes a twist-lock mechanism intended to reduce the likelihood of accidental disconnection and supports single-phase, 3-pole, 4-wire configurations at 125/250V AC. The device is constructed with nylon housing and brass contacts.
Key Features of the HUBBELL 30A Twist-Lock Receptacle L14-30R:
- Amperage/Voltage: Rated for 30 A, 125/250V AC operation
- NEMA Configuration: L14-30R (3-pole, 4-wire)
- Mounting Type: Flush mount with included screw mounting hardware
- Material Construction: Nylon polyester base and housing
- all-brass mounting and grounding system enhances corrosion resistance
- Wire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals
- wire restraint recess reduces terminal loosening risk
- Dielectric Strength & Flammability: Withstands minimum 2,000V dielectric voltage
- UL94 V-2 flammability rating or better
- Operating Temperature Range: -40°C to +75°C (without impact), maximum continuous temperature rise of 30°C at full rated current after overload cycles
- NEMA Enclosure/IP Rating: NEMA Type 1 enclosure
- IP20 suitability for indoor dry locations unless otherwise protected
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, listed to UL498 standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.90
- Package Height: 4.20
- Package Weight: 0.30
