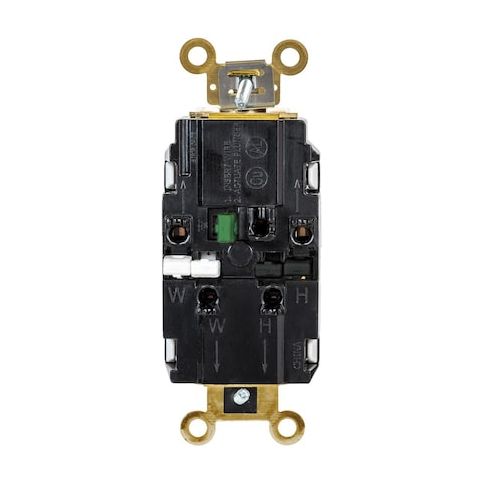

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL5362STWTR
Free Shipping
In Stock
The HUBBELL EdgeConnect Duplex Straight Blade Receptacle is a versatile and reliable electrical outlet designed for indoor industrial use. This 20A, 125V AC receptacle features a screwless, push-in wire termination system for tool-free installation, making it ideal for applications where speed and efficiency are crucial. With its tamper-resistant design and grounded connections, it provides a safe and secure solution for a wide range of industries, including manufacturing, healthcare, and education. Suitable for dry, indoor locations, this receptacle is also compliant with various standards, including CSA, Fed. Spec., NEMA, and UL, making it a trustworthy choice for professionals and DIYers alike.
Top product features:
- Wire Connection Type: Push-in back wiring does not require screwdrivers or torque wrenches during installation.
- Spring Termination: Designed to maintain contact with wires
- Tamper Resistant: Includes features that limit access to internal components
Top product applications:
- Industrial settings such as factories, warehouses, and laboratories
- Commercial spaces including offices, restaurants, and retail stores
- Home offices and home workspaces
The HUBBELL EdgeConnect™ Duplex Straight Blade Receptacle is a 20A, 125V AC electrical outlet rated for indoor industrial use. It features a screwless, push-in wire termination system that enables tool-free installation via push-in wire termination system. This duplex receptacle accommodates two outlets in a single gang configuration and is tamper resistant with grounded connections.
Key Features of the HUBBELL EdgeConnect™ Duplex Receptacle:
- Wire Connection Type: Push-in back wiring does not require screwdrivers or torque wrenches during installation.
- Spring Termination: Designed to maintain contact with wires
- Contact Material: Copper alloy contacts
- NEMA Configuration: 5-20R rated for 20A, intended for use in single-phase applications
- Tamper Resistant: Includes features that limit access to internal components
- Mounting Hardware Included: Supplied with necessary hardware for surface mounting on standard boxes (1-gang).
- Operating Temperature Range: Rated from -40°F to 167°F
- suitable for dry, indoor locations only.
- Standards Compliance: Meets CSA Certified 22.2 No 42 File 285, Fed. Spec. W-C-596, NEMA WD-6, UL 498 File No E2186 requirements.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.40
- Package Width: 4.70
- Package Height: 4.10
- Package Weight: 2.61
