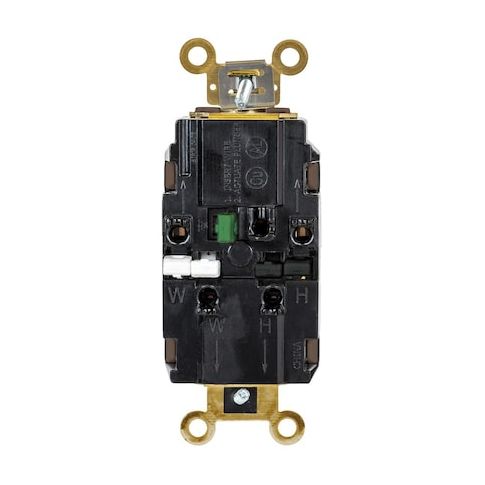

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL5362STTR
Free Shipping
In Stock
Elevate your indoor electrical infrastructure with the HUBBELL Duplex Straight Blade Receptacle, a reliable and efficient solution for residential and commercial spaces. Designed for use in dry locations, this receptacle features a screwless termination system for tool-free wire installation, reducing installation time and increasing productivity. With a current rating of 20 A at 125V AC and a tamper-resistant design, it ensures safe and secure electrical connections. Suitable for a wide range of applications, including offices, homes, and public buildings, this receptacle meets CSA and UL standards, providing peace of mind for builders and homeowners alike.
Top product features:
- Accommodates 2 outlets in a single gang configuration
- Supports back-wired push-in connections suitable for copper conductors ranging from 14 AWG to 10 AWG
- Features a tamper-resistant design intended to reduce insertion of foreign objects
Top product applications:
- In-wall residential electrical outlet
- Commercial office building electrical outlet
- Industrial electrical outlet for machinery or equipment
The HUBBELL Duplex Straight Blade Receptacle is a grounded, intended for use in indoor, dry locations electrical outlet designed for indoor, dry locations. It features the EdgeConnect™ screwless termination system, allowing for tool-free wire installation by simply inserting the wire and pressing down the plunger. This receptacle accommodates 2 outlets in a single gang configuration and supports back-wired push-in connections suitable for copper conductors ranging from 14 AWG to 10 AWG.
Key Features of the HUBBELL Duplex Straight Blade Receptacle:
- Current Rating: Rated for up to 20 A at 125V AC
- NEMA Configuration: 5-20R duplex type with polarized design
- Wire Connection Type: Push-in, back-wired screwless termination that features a system enabling wire installation without tools
- Contact Material: Copper alloy contacts with triple and double wipe design
- Tamper Resistant: Incorporates features intended to reduce insertion of foreign objects
- Housing Material: Thermoplastic housing
- brown color
- Mounting Type: Surface mount
- includes mounting hardware
- Standards Compliance: CSA Certified (22.2 No 42 File 285), Federal Specification W-C-596, NEMA WD-6, UL Listed (UL 498 File No E2186)
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C)
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.30
- Package Width: 4.70
- Package Height: 4.10
- Package Weight: 2.60
