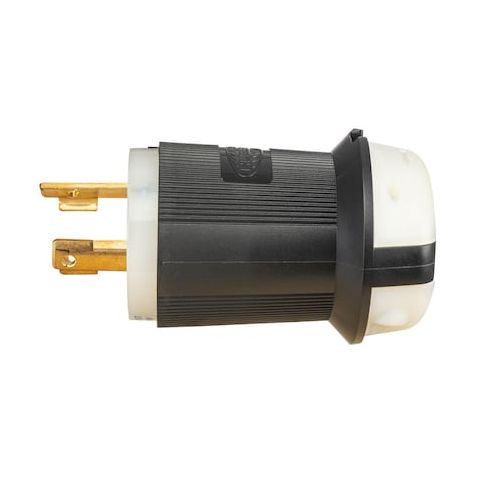

Locking Plug, L6-30P, 30 A, 250V AC, Single Phase, 2 Pole, Spring Clamp Terminals, Black, White MPN:HBL2621ST

• The HUBBELL Locking Plug is an electrical connector rated for industrial applications

• provides a locking mechanism to maintain connection integrity. It features a locking mechanism intended to reduce the likelihood of accidental disconnection and accommodates wire sizes from 14 AWG to 8 AWG. The plug supports single-phase operation at up to 30 amps and 250V AC, with straight connection orientation and spring clamp terminals for faster termination without the need for a torque wrench.




  Key Features of the HUBBELL Locking Plug:





  • Blade Material: Copper alloy blades are used for electrical conductivity.


  • Housing Material: Nylon housing material offers chemical resistance and impact resistance.


  • Temperature Range: Operates between -40°C and 75°C.


  • Cable Diameter Compatibility: Accepts cable diameters from 0.36 in to 0.93 in.


  • Wire Connection Type: Spring clamp terminals facilitate wiring


  • Polarized & Grounded: Features polarization and grounding for proper alignment during installation.


  • Number of Poles/Blades: Two poles, three blades configuration
  • shrouded design not included.


  • UL Flammability Rating: Rated HB under UL 94 standards.


  • IP Rating: IP20 rated enclosure suitable for indoor use where limited ingress protection is acceptable.


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specifications W-C-596, listed to UL 498 grade requirements (Federal Specification grade).
