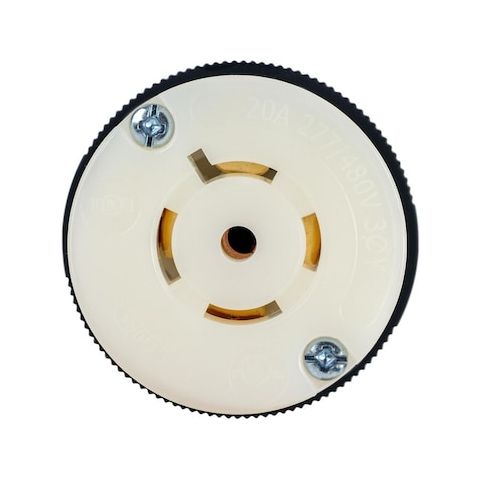

Locking Connector, L22-20R, 20 A, 277/480V AC, Three Phase, 4 Pole, Spring Clamp Terminals MPN:HBL2523ST
Free Shipping
In Stock
The HUBBELL Locking Connector is a reliable and efficient solution for industrial settings, providing a secure connection without the need for tools. Its EdgeConnect system allows for easy wire insertion and securing, while its spring clamp terminals accommodate a range of wire sizes. Suitable for dry environments, this connector is ideal for applications such as power distribution, motor control, and lighting systems. With a current rating of 20 A at 277/480V AC and a maximum horsepower rating of 5 hp, it's perfect for use in industrial machinery, equipment, and electrical panels.
Top product features:
- Wire Connection Type: Spring clamp terminals enable termination without tools via insertion of wire and depression of the plunger.
- NEMA Configuration: Configured for three-phase power with 4 poles and 4 wires.
- Wire Size Compatibility: Compatible with wire sizes from 16 AWG to 8 AWG.
Top product applications:
- Industrial control panel wiring
- Machine tool wiring
- Power distribution panel wiring
The HUBBELL Locking Connector is a screwless electrical connector intended for use in industrial settings. It features the EdgeConnect™ system, allowing insertion of wire and securing by pressing a plunger
- does not require tools during installation. This connector accommodates a range of wire sizes and is suitable for dry environments requiring locking connections.
Key Features of the HUBBELL Locking Connector:
- Wire Connection Type: Spring clamp terminals enable termination without tools via insertion of wire and depression of the plunger.
- NEMA Configuration: Configured for three-phase power with 4 poles and 4 wires.
- Current/Voltage Rating: Rated for 20 A at 277/480V AC
- maximum horsepower rating: 5 hp.
- Wire Size Compatibility: Compatible with wire sizes from 16 AWG to 8 AWG
- accommodates cable diameters between 0.35 in and 1.15 in.
- Operating Temperature Range: Rated operating temperature range: -40°C to +75°C.
- Housing Material & Resistance Properties: Housing material: nylon (UL94 HB flammability rating)
- overall length: 2.33 inches.
- Cord Grip Design: Cord grip design helps reduce strain on terminations
- funnel-shaped entry facilitates wiring process.
- Standards Compliance: Meets CSA C22.2 No.42, Federal Specification W-C-596, UL498 standards.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 2.40
- Package Height: 2.40
- Package Weight: 0.48
