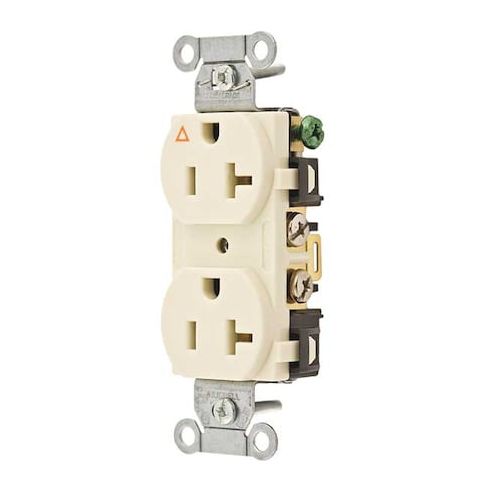

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG20CRLA
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R Almond is a specification-grade duplex outlet designed for indoor use, ideal for installations where a dedicated grounding path is specified. Its isolated ground configuration ensures secure connections, while the smooth nylon face with triangle marking provides visual confirmation of its isolated ground feature. Suitable for a wide range of applications, including commercial and residential settings, this receptacle supports side-wired connections and is certified to meet rigorous safety standards. Its compact design and durable construction make it a reliable choice for high-traffic areas, such as offices, schools, and healthcare facilities.
Top product features:
- Supports side-wired connections
- Has a smooth nylon face with triangle marking denoting its isolated ground feature
- Withstands minimum 2,000V dielectric voltage
Top product applications:
- Residential electrical installations
- Commercial electrical installations
- Industrial electrical installations
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R Almond is a specification grade duplex outlet rated for indoor use. It includes an isolated ground configuration that separates the ground contacts from the mounting strap and conventional grounding system
- intended for installations where a dedicated grounding path is specified. The receptacle has a smooth nylon face with triangle marking denoting its isolated ground feature
- supports side-wired connections.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A at 125 VAC
- NEMA Configuration: 5-20R, standard duplex outlet type
- Grounding: Isolated ground design with green grounding screw directly connected to brass ground contacts
- Material Construction: Nylon base and face
- brass power and ground contacts
- galvanized steel mounting strap
- Wiring Method: Side wired with screw terminals accommodating #12–#10 AWG copper wire (stranded or solid)
- Operating Temperature Range: -40°C to +75°C (without impact)
- Certification & Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant
- Dielectric Strength & Flammability Rating: Withstands minimum 2,000V dielectric voltage
- UL94 V-2 flammability rating
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.40
- Package Width: 2.70
- Package Height: 0.60
- Package Weight: 0.10
