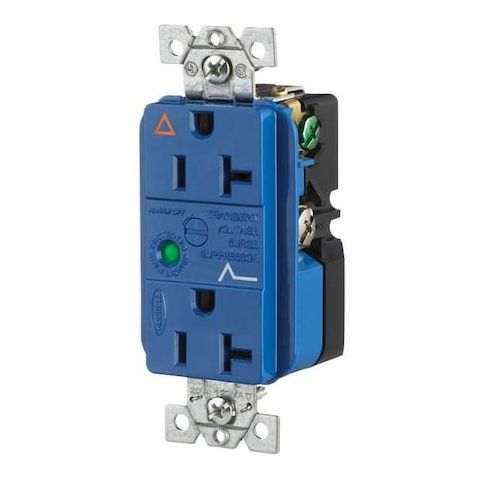

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG5362SA
Free Shipping
In Stock
The HUBBELL 5-20R Decorator Duplex Receptacle is a reliable and feature-rich solution for industrial applications, providing a secure and efficient way to power equipment and devices. With its integrated surge suppression and alarm indicators, this receptacle protects against power surges and ensures a stable power supply. Its isolated ground design and single phase, polarized circuit design make it suitable for a wide range of applications, including commercial and industrial settings. The receptacle's flush mount design and durable nylon construction also make it easy to install and maintain, making it an ideal choice for any business or facility.
Top product features:
- Flush mount design suitable for single-gang installations
- Integrated surge suppression using dual MOVs (rated at 240 joules per mode)
- Red LED serves as a visual indicator of power status
Top product applications:
- Industrial Applications
- Residential Electrical Upgrades
- Commercial Electrical Installations
The HUBBELL 5-20R Decorator Duplex Receptacle is a flush mount, isolated ground outlet rated for 20A and 125V AC. Suitable for industrial applications, this duplex receptacle features integrated surge suppression using dual MOVs (rated at 240 joules per mode). It includes both audible and visual alarms to indicate the status of surge protection, as well as a power-on indicator light. The device utilizes nylon construction for its base and top, and supports back or side wiring methods.
Key Features of the HUBBELL - Receptacle, 20 A Amps, 125V AC:
- Amperage/Voltage: Rated for 20A at 125V AC
- NEMA Configuration: Duplex outlet with NEMA 5-20R configuration
- Surge Protection: Integrated surge suppression using dual MOVs (rated at 240 joules per mode)
- Alarm Indicators: Audible alarm indicates status of surge protection
- red LED serves as a visual indicator
- Power Indicator: Visual indicator displays power status
- Grounding Type: Isolated ground design with dedicated green grounding screw
- Mounting Type: Flush mount suitable for single-gang installations
- Circuit Design: Single phase, polarized
- accommodates two poles and three wires
- Material Construction: Nylon housing with steel mounting strap and brass contacts/screws
- Certifications/Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), ANSI/IEEE C62.41 compliant
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.90
- Package Height: 4.20
- Package Weight: 0.30
