Mechanical Interlock, Unfused, 100A, 25 HP MPN:HBL4100MI9W
Free Shipping
In Stock

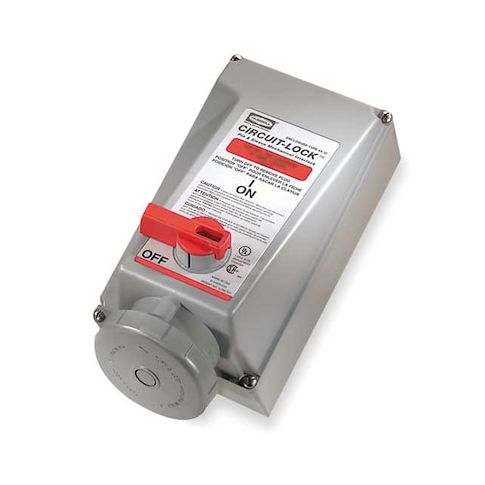

The HUBBELL Mechanical Interlock, Unfused, 100A, 25 HP is a versatile and reliable device designed for use in applications requiring up to 100A and IP67 ingress protection. Suitable for indoor and outdoor environments, it combines a disconnect switch and receptacle in one non-metallic enclosure, allowing for visual confirmation of plug removal. This unit is ideal for use in industries such as manufacturing, construction, and oil and gas, where safety and reliability are paramount. Its unfused design and locking handle enable lockout/tagout procedures, ensuring safe and efficient operation of equipment and machinery.
Top product features:
- The HUBBELL Mechanical Interlock, Unfused, 100A, 25 HP features an unfused design rated for up to 100 amps.
- It includes a disconnect switch and receptacle combination that allows visual confirmation of plug removal.
- The device has a lockable handle that accommodates lockout/tagout procedures and an interlock mechanism that prevents plug removal when the switch is ON.
Top product applications:
- Heavy Duty Industrial Equipment
- Mining and Drilling Operations
- Oil and Gas Field Equipment
The HUBBELL Mechanical Interlock, Unfused, 100A, 25 HP is a mechanically interlocked pin and sleeve device rated for use in applications requiring up to 100A and IP67 ingress protection. This unit combines a disconnect switch and receptacle in one non-metallic enclosure, including a disconnect switch and receptacle combination that allows visual confirmation of plug removal. It features an unfused design rated for up to 100 amps and 25 horsepower at 240V AC (3-phase), rated for indoor (Type 12) and outdoor (Type 4X, IP67) environments as specified.
Key Features of the HUBBELL Mechanical Interlock Device:
- Amperage/Voltage Rating: Rated for 100A, 240V AC (3-phase), supporting up to 25 HP loads.
- Electrical Connection: Pin and sleeve type with pressure terminal screws
- accommodates #3 AWG to #1/0 AWG copper wire only.
- Ingress Protection: IP67
- enclosure ratings: Outdoor Type 4X, Indoor Type 12.
- Material Construction: Non-metallic thermoplastic housing with stainless steel assembly screws, nickel-plated brass hinge pins, neoprene gaskets/seals, and UV-stabilized components.
- Locking Handle: Lockable handle accommodates lockout/tagout procedures
- interlock mechanism prevents plug removal when switch is ON.
- Circuit Interrupting Capability: Rated for current interruption at stated amperage
- dielectric strength tested to minimum of 3,000V AC.
- Pole/Wire Configuration: Supports three poles/four wires as per IEC standards
- compatible with Hubbell part number 6C556 plugs.
- Operating Temperature Range: -40°C to +75°C continuous
- Certifications & Standards: UL Listed, CSA Certified
- conforms to IEC mechanical interlock standards.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.60
- Package Width: 10.70
- Package Height: 7.70
- Package Weight: 10.00
