Watertight Locking Connector, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals MPN:HBL2733SW

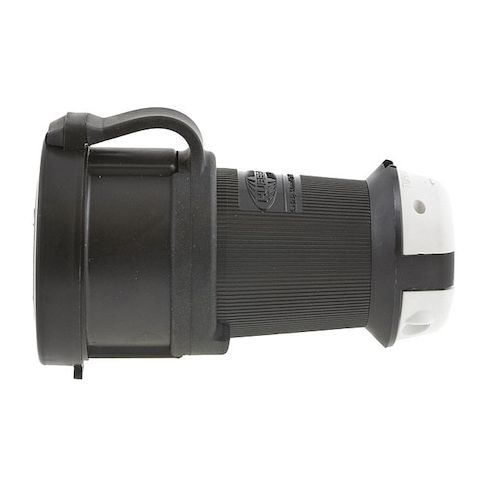

• The HUBBELL 30A Watertight Twist-Lock Connector (L16-30R) is a shrouded, industrial and commercial setting rated connector for use in demanding environments. Rated for 480V AC, three-phase power with a current rating of 30 amps, this connector features a housing constructed from engineered thermoplastic materials

• rated as watertight and impact resistant. It includes a press-on closure cap included to maintain its watertight seal when not in use and utilizes screw terminals for wire connection.




  Key Features of the HUBBELL 30A Watertight Twist-Lock Connector:





  • NEMA Enclosure Rating: Type 4, 4X, and 12
  • IP66 rated for protection against water and dust ingress


  • Housing Material: Impact modified PBT (Valox) with clear polycarbonate retainer
  • flammability rated UL 94 V0


  • Cord Size Compatibility: Accepts cable diameters from 0.35 in to 1.15 in
  • suitable for wire sizes between 8 AWG and 16 AWG


  • Contact Material: Brass contacts used for conductivity


  • Operating Temperature Range: -40°C to +75°C maximum operating temperature


  • NEMA Configuration: L16-30R twist-lock design with straight connection orientation


  • Resistance Properties: Rated as moisture resistant, impact resistant, and watertight construction


  • Screw Material: Stainless steel screws used throughout assembly


  • Standards Compliance: CSA Certified Type 4/4X/12
  • UL Listed product standards met
