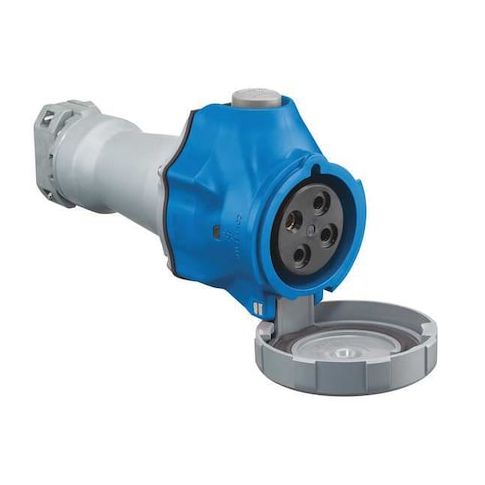

Watertight Pin & Sleeve Plug, 63 A, 240V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBLS460C9W

• The HUBBELL Pin and Sleeve Connector is a pin & sleeve plug with NEMA 4X

• IP68/IP69K enclosure ratings. It features a 3-pole, 4-wire configuration and is compatible with the Advantage Switch-Rated series. This connector is rated for use in wet conditions and supports up to 63 A at 240V AC, making it suitable for environments requiring specified current and voltage capacities.




  Key Features of the HUBBELL Pin and Sleeve Connector:





  • Body Material: Valox 357 PBT


  • Contact Material: Beryllium copper


  • NEMA Enclosure Rating: Rated NEMA 4X
  • IP68/IP69K for protection against water ingress


  • Horsepower Rating: Up to 10 HP


  • Wire Size Compatibility: Accepts wire sizes from 8 AWG to 2 AWG via screw terminals


  • Operating Temperature Range: -40°C to +75°C


  • Power Indication: LED indicator


  • Cable Diameter Range: Accepts cables between 0.50 in and 1.45 in diameter


  • Grounding Style: IEC grounding


  • Features: Color-coded housing, self-closing gasketed cover, insulated non-metallic design, shrouded construction, spring-loaded cap


  • Standards Compliance: CSA Certified LR280C
  • UL Classified to IEC 60309-1/2
  • UL E146033 listed as switch-rated device approved as disconnecting means for motor/branch circuits
