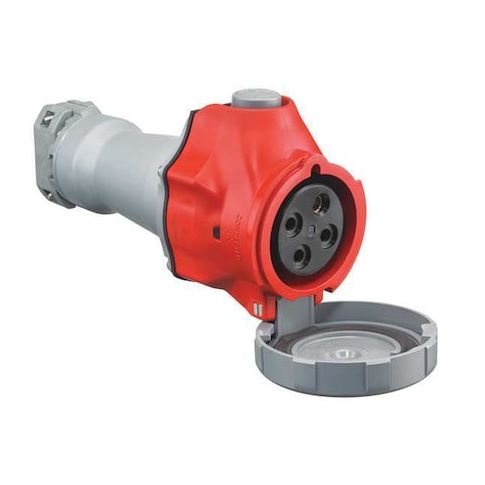

Watertight Pin & Sleeve Plug, 60 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X MPN:HBLS460C7W
Free Shipping
In Stock
The HUBBELL Pin and Sleeve Connector is a versatile and reliable solution for industrial electrical connections. Suitable for use in harsh environments, it features a 3-pole, 4-wire configuration and is rated for 60 A at 480V AC in three-phase systems. With its NEMA 4X and IP68/IP69K enclosure ratings, it can withstand exposure to moisture, corrosion, and extreme temperatures. Ideal for use as a disconnecting means in motor and branch circuits, this connector is also compatible with IEC 60309-2 standards, making it a valuable asset for industries such as manufacturing, construction, and oil and gas.
Top product features:
- Operates between -40°C and +75°C, allowing for use in a wide range of environments.
- Accepts cable diameters from 0.5 in to 1.45 in, accommodating various cable sizes.
- Equipped with power-indicating LEDs, providing visual indication of power status.
Top product applications:
- Industrial Electrical Connections
- Motor and Branch Circuits
- Wet Locations
The HUBBELL Pin and Sleeve Connector is a pin & sleeve plug with NEMA 4X and IP68/IP69K enclosure ratings suitable for use in industrial electrical connections. It features a 3-pole, 4-wire configuration and is rated for 60 A at 480V AC in three-phase systems. The connector is part of the Advantage Switch-Rated series, compatible with IEC 60309-2 standards
- can be used as a disconnecting means in motor and branch circuits when installed according to applicable codes. Its constructed with an insulated non-metallic housing (Valox 357 PBT), providing resistance to impact, corrosion, moisture, and harsh conditions.
Key Features of the HUBBELL Pin and Sleeve Connector:
- Current/Voltage Rating: Rated for up to 60 A at 480V AC
- Poles/Wires: Three poles, four wires (grounded)
- Housing Material: Valox 357 PBT
- Contact Material: Beryllium copper contacts
- NEMA/IP Ratings: NEMA 4X enclosure
- IP68/IP69K style for wet locations
- Cable Accommodation: Accepts cable diameters from 0.5 in to 1.45 in
- wire size range from #8 AWG to #2 AWG
- Temperature Range: Operates between -40°C and +75°C
- Power Indication: Equipped with power-indicating LEDs
- Cover Type: Corrosion-resistant self-closing gasketed spring-loaded cap
- Connection Orientation/Type: Straight orientation with screw terminal wire connection
- Standards Compliance: CSA Certified LR280C
- UL Classified to IEC 60309-1/-2
- UL E146033 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.80
- Package Width: 5.70
- Package Height: 4.90
- Package Weight: 3.45
