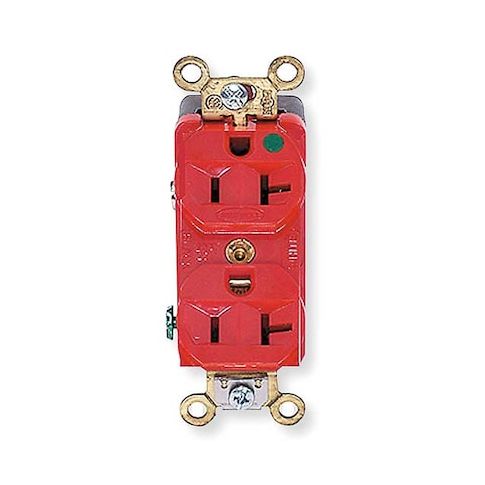

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8300ILR
Free Shipping
In Stock
This HUBBELL 20A Duplex Receptacle is a reliable and versatile solution for a wide range of applications, from residential to commercial settings. Its hospital-grade rating ensures a safe and secure power source, making it ideal for areas with high electrical demand. The compact design and flush mount installation options provide flexibility and convenience, while the four-point grounding system and nickel-plated brass contacts ensure optimal performance and durability. Suitable for use in kitchens, bathrooms, offices, and hospitals, this receptacle is a must-have for any space that requires reliable and efficient power distribution.
Top product features:
- It features a compact, impact-resistant polycarbonate housing.
- The device includes both back and side wired screw terminals to accommodate #12–#10 AWG copper wire.
- The product has a four-point grounding system designed in accordance with manufacturer specifications.
Top product applications:
- Residential Electrical Wiring
- Office Building Electrical Installation
- Hospital Electrical Infrastructure
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R RD is a Hospital Grade: Rated and constructed to meet applicable hospital grade requirements. It features a compact, impact-resistant polycarbonate housing and is rated for 20 amps at 125 volts AC. The device includes both back and side wired screw terminals to accommodate #12–#10 AWG copper wire, supporting flexible installation options in flush mount applications.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Hospital Grade: Rated and constructed to meet applicable hospital grade requirements.
- Amperage/Voltage: Rated for 20 A, 125 VAC operation with NEMA 5-20R configuration.
- Wiring Options: Back and side wired screw terminals accept #12–#10 AWG stranded or solid copper wire only.
- Contact Material: Nickel-plated brass contacts
- see manufacturer specifications for details on material properties.
- Grounding System: Four-point grounding system designed in accordance with manufacturer specifications.
- Impact Resistance: Impact-modified PBT/reinforced PET construction with a finder groove face design
- see manufacturer documentation for additional information on material characteristics.
- Face includes two LEDs as specified by the manufacturer.
- Circuit Interrupting Capability: Certified per supplier documentation
- rated dielectric voltage minimum 2,000V.
- Mounting Type: Flush mount design with included mounting hardware and grounding clip
- standard size product dimensions (3.28" x 1.33" x 1.05").
- Screw Terminal Identification: Terminals identified per UL498/CSA standards for proper wiring connections.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.50
- Package Height: 4.10
- Package Weight: 0.30
