Watertight Pin & Sleeve Plug, 100 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBL4100C9W

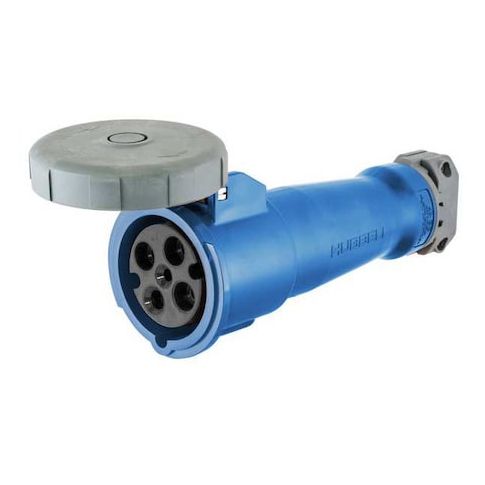

• The HUBBELL IEC Pin and Sleeve Connector is a plug rated for use in industrial electrical connections, rated for 100A and 250V AC. It features a rugged, insulated non-metallic housing made from Zytel 801 nylon and PBT, with color-coded housings. The connector supports three-phase power with four wires and three poles, using screw terminals for wire connection. Its design includes a self-closing gasketed cover intended to limit exposure to moisture and impact in demanding environments.





  Key Features of the HUBBELL IEC Pin & Sleeve Connector:





  • Current/Voltage Rating: Rated for 100A at 250V AC
  • rated for use in industrial applications


  • Housing Material: Constructed from Zytel 801 nylon (body) and PBT (housing) with specified material properties per manufacturer documentation


  • Ingress Protection: IP68/IP69K ingress protection rating as specified by the manufacturer


  • NEMA Enclosure Rating: NEMA Type 4X enclosure rating as specified by the manufacturer


  • Cable Accommodation: Accepts cable diameters from 1.065 in to 1.94 in
  • wire size range from 3 AWG to 1/0 AWG


  • Temperature Range: Operates between -40°C to +75°C


  • Horsepower Rating: Rated up to 15 HP
  • grounded per IEC standards


  • Connection Orientation & Style: Straight orientation with shrouded contacts
  • spring-loaded cap type enhances sealing when not connected


  • Standards Compliance: CSA Certified LR280C, UL Classified to IEC60309-1/-2, UL E146033
