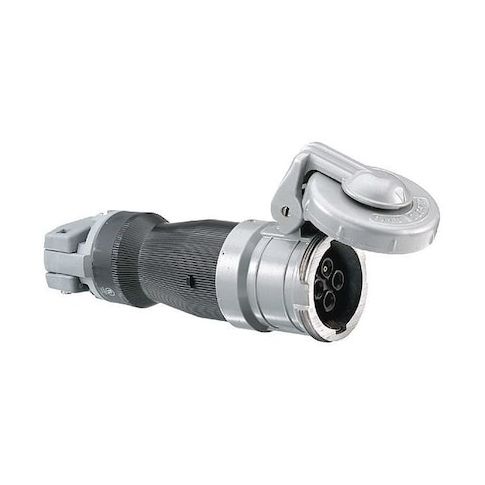

Watertight Pin & Sleeve Connector, 30 A, 600V AC/250V DC, Three Phase, 3 Pole, Style 1 Grounding MPN:HBL430CS1W
Free Shipping
In Stock
The HUBBELL Watertight Pin & Sleeve Connector is a rugged and reliable industrial wiring device designed for harsh environments. Suitable for applications requiring moisture and impact resistance, this 30A, 600VAC/250VDC connector features a composite construction with a thermoplastic housing and aluminum shroud. Ideal for use in outdoor or wet locations, it provides excellent protection against dust, water, and corrosion. With its three-phase power system compatibility and four-wire grounding configuration, it's perfect for use in industrial settings, such as construction sites, manufacturing facilities, and oil rigs, where reliability and safety are paramount.
Top product features:
- Spring-loaded, gasketed cover designed to limit dust ingress
- Pin chamber design intended to contain arcing within the interior compartment
- Accepts cable diameters from 0.375 in to 1.2 in, accommodating #10 AWG to #8 AWG conductors
Top product applications:
- Industrial Control Panels
- Motor Control Centers
- Oil and Gas Industry Wiring
The HUBBELL Watertight Pin & Sleeve Connector is a 30A, 600VAC/250VDC industrial wiring device suitable for applications requiring moisture and impact resistance, as specified by its ratings. It features a composite construction with a Valox 357 thermoplastic housing and an epoxy-painted aluminum shroud, with materials selected for their specified performance characteristics. The connector accommodates #10 AWG to #8 AWG conductors, compatible with three-phase power systems using a four-wire grounding configuration, and utilizes pressure terminal screws for conductor connection.
Key Features of the HUBBELL Watertight Pin & Sleeve Connector:
- Current/Voltage Rating: Rated for 30 amps at up to 600VAC or 250VDC
- Construction: Valox 357 thermoplastic housing with aluminum shroud
- cord mounted design
- Environmental Protection: Neoprene sealing glands
- NEMA Type 4X enclosure rating
- IP68/IP69K ingress protection ratings
- Operating Temperature Range: -40°C to +75°C (continuous)
- Cable Accommodation: Accepts cable diameters from 0.375 in to 1.2 in
- conductor range #10 AWG–#8 AWG
- Connection Method: Pressure terminal screws for conductor connection
- Grounding Style: Style 1 grounding with four-wire configuration (three poles plus ground)
- Features: Spring-loaded, gasketed cover designed to limit dust ingress
- pin chamber design intended to contain arcing within the interior compartment
- Standards Compliance: UL Listed, CSA Certified C22.2 No.182.1, UL Standard 1682
- flammability rating UL94 V-0
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.30
- Package Width: 5.20
- Package Height: 4.50
- Package Weight: 2.05
