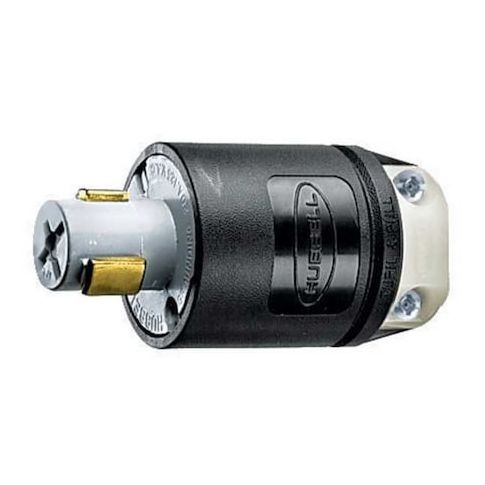

Locking Plug, Non-NEMA, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Gray MPN:HBL23004HG
Free Shipping
In Stock
Protect your hospital's electrical systems with the HUBBELL 20A Hospital Locking Plug, a non-NEMA locking plug designed for use in environments requiring secure plug configurations. Constructed with chemical and impact resistant materials, this plug accommodates cords from 0.300 in to 0.660 in diameter and features screw terminals for easy wire connection. Ideal for use in hospitals, clinics, and healthcare facilities, this plug provides a safe and secure way to manage electrical cords and reduce the risk of electrical shock. Its hospital-grade design meets strict safety standards, making it an essential component for any healthcare electrical system.
Top product features:
- Accommodates cords from 0.300 in to 0.660 in diameter
- Features a metallic housing with an epoxy-coated finish and bakelite construction, providing chemical and impact resistance
- Uses screw terminals for wire connection
Top product applications:
- Hospital settings: The HUBBELL 20A Hospital Locking Plug is designed for use in hospital environments where locking plug configurations are required.
- Industrial settings: The plug's chemical and impact resistance make it suitable for use in industrial settings where harsh conditions are present.
- Medical equipment installation: The plug's grounding configuration and CSA certification make it a suitable choice for medical equipment installation, ensuring safety and reliability.
The HUBBELL 20A Hospital Locking Plug is a hospital grade, non-NEMA locking plug intended for use in environments requiring locking plug configurations. It features a metallic housing with an epoxy-coated finish and bakelite construction, constructed with materials that provide chemical and impact resistance. This plug accommodates cords from 0.300 in to 0.660 in diameter and uses screw terminals for wire connection.
Key Features of the HUBBELL 20A Hospital Locking Plug:
- Current/Voltage Rating: Rated for 20 A at 125V AC, single phase
- Configuration: Non-NEMA, polarized design with straight connection orientation
- Cord Size Compatibility: Accepts cable diameters from 0.30 in to 0.66 in
- Material & Finish: Metallic housing with epoxy coating
- bakelite body construction
- Wire Connection Type: Standard wiring style using screw terminals
- Number of Poles/Wires/Blades: Two poles, three wires, three blades
- grounded configuration
- Resistance Properties: Chemical resistant and impact resistant construction
- Grade & Standards: Hospital grade
- CSA Certified and UL Listed
- IP Rating: IP20 (protection against solid objects greater than 12 mm)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.40
- Package Width: 5.00
- Package Height: 2.90
- Package Weight: 0.62
