Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Isolated Ground MPN:IG5262SA
Free Shipping
In Stock

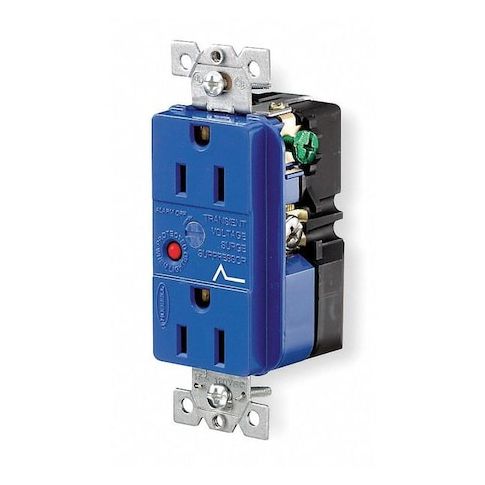

Protect your industrial settings with the HUBBELL Straight Blade Receptacle, a 15A, 125V AC decorator duplex outlet designed for flush mounting. Featuring isolated ground construction and integrated surge protection, this receptacle safeguards against electrical surges and provides up to 240 joules of suppression. The device includes audible and visual indicators for surge protection status and a power-on indicator light for operational verification. Suitable for industrial settings, this receptacle is perfect for applications where electrical safety is paramount, such as in manufacturing facilities, warehouses, and data centers. Its durable construction and reliable performance make it an ideal choice for protecting sensitive equipment.
Top product features:
- The receptacle features integrated surge protection with two 22mm square MOVs, providing up to 240 joules of surge suppression per mode.
- The receptacle includes both audible and visual indicators for surge protection status, as well as a power-on indicator light for operational verification.
- The receptacle has an isolated ground system with a dedicated green grounding screw.
Top product applications:
- Industrial Settings
- Flush Mounting in Single-Gang Installations
- High-Density Commercial Spaces
The HUBBELL Receptacle is a 15A, 125V AC decorator duplex outlet suitable for flush mounting in industrial settings. It features isolated ground construction and integrated surge protection with two 22mm square MOVs, providing up to 240 joules of surge suppression per mode. The receptacle includes both audible and visual indicators for surge protection status, as well as a power-on indicator light for operational verification.
Key Features of the HUBBELL - Receptacle, Decorator Duplex Outlet:
- Amperage/Voltage: Rated for 15A and 125V AC operation
- NEMA Configuration: 5-15R duplex outlet with straight blade design
- Surge Protection: Integrated MOV-based suppression
- audible alarm indicates when surge protection requires attention
- Grounding: Isolated ground system with dedicated green grounding screw
- Visual Indicators: Red LED power-on indicator
- Alarm System: Audible alarm notifies user regarding the status of the surge protection
- muting screw included
- Construction Materials: Nylon device base and top
- brass clamping plate and contacts
- steel-zinc coated mounting strap
- Mounting Type: Flush mount suitable for single-gang installations using back wiring method with screw terminals
- Certifications/Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, meets ANSI/IEEE C62.41 (IEEE 587)
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.20
- Package Height: 1.90
- Package Weight: 0.30
