Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG15DR
Free Shipping
In Stock

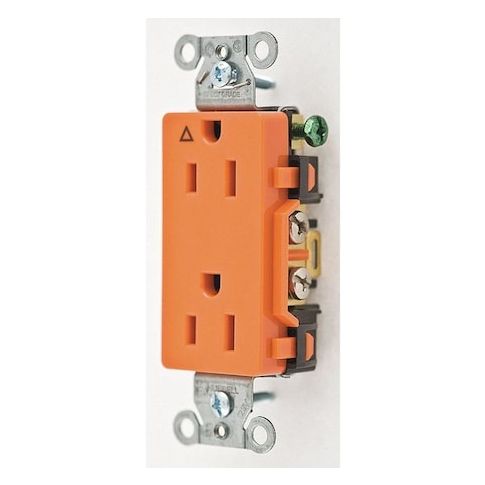

The HUBBELL Decorator Duplex Receptacle is a versatile and reliable outlet designed for commercial settings, offering a flush mount installation and isolated ground design for added safety and flexibility. Compatible with dedicated insulated ground wiring, this device supports back and side wired screw terminals for easy installation. Suitable for a range of applications, including offices, restaurants, and retail spaces, this receptacle withstands high voltage and meets rigorous performance standards, ensuring a secure and efficient electrical connection. Its durable construction and robust features make it an ideal choice for commercial environments.
Top product features:
- This isolated ground receptacle features an insulation barrier that separates ground contacts from the mounting strap and conventional grounding system.
- The device supports back and side wired screw terminals for flexible installation.
- This receptacle is certified current interrupting at full rated current.
Top product applications:
- Commercial Office Settings
- Retail Stores
- Industrial Facilities
The HUBBELL Decorator Duplex Receptacle is a 15 amp, 125V AC flush mount outlet suitable for use in commercial settings. This isolated ground receptacle features an insulation barrier that separates ground contacts from the mounting strap and conventional grounding system
- compatible with dedicated insulated ground wiring. The device supports back and side wired screw terminals for flexible installation.
Key Features of the HUBBELL Decorator Duplex Receptacle:
- Amperage/Voltage: Rated for 15 A at 125V AC
- Mounting Type: Flush mount with included galvanized steel mounting hardware
- NEMA Configuration: 5-15R decorator duplex style
- Grounding: Isolated ground design with green grounding screw connected directly to brass ground contacts
- Material Construction: Nylon face and base
- brass power and ground contacts
- plated steel terminal screws
- Circuit Compatibility: Accepts #14–#10 AWG copper stranded or solid conductors via back or side wiring methods
- Performance Ratings: Withstands dielectric voltage of 2,000V minimum
- UL 94 V-2 flammability rating
- certified current interrupting at full rated current
- Standards Compliance: CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed (UL498 File E2186)
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 4.80
- Package Height: 3.00
- Package Weight: 1.81
