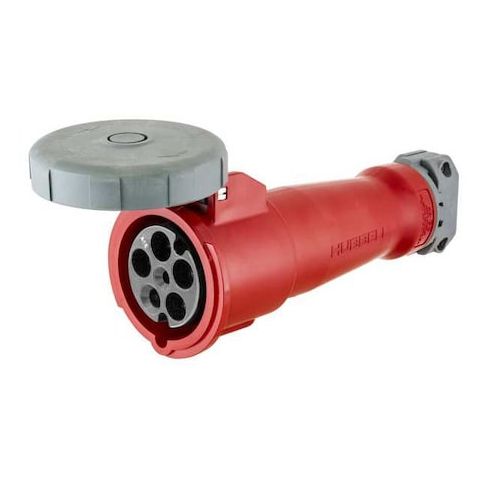

Watertight Pin & Sleeve Connector, 100 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red MPN:HBL5100C7W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a rugged and reliable electrical connector designed for high-power applications in industrial environments. Rated for 100A and 277/480V AC, this three-phase connector features a durable Zytel 801 nylon body and is compatible with the HBL Heavy Duty series. Its IP68/IP69K rating ensures protection against harsh conditions, while its color-coded housings and self-closing gasketed cover provide easy identification and secure connections. Suitable for use in demanding settings such as manufacturing facilities, construction sites, and outdoor equipment, this connector provides reliable and efficient power distribution.
Top product features:
- The HUBBELL IEC Pin and Sleeve Connector is rated for 100A and 277/480V AC, suitable for high power applications.
- It features a rugged Zytel 801 nylon body with an insulated housing to withstand demanding conditions.
- The connector is designed with a self-closing gasketed cover and shrouded contacts for secure and reliable connections.
Top product applications:
- Industrial electrical connections
- Power distribution in heavy-duty environments
- High-power applications requiring 100A and 277/480V AC
The HUBBELL IEC Pin and Sleeve Connector is an electrical connector rated for 100A and 277/480V AC, intended for use in industrial environments. Rated for 100A and 277/480V AC, this three-phase, five-wire grounding device features a rugged Zytel 801 nylon body with an insulated housing constructed from Zytel 801 nylon to withstand demanding conditions. It is compatible with the HBL Heavy Duty series and uses pressure terminal screws for connect conductors.
Key Features of the HUBBELL IEC Pin and Sleeve Connector:
- Current/Voltage Rating: Rated for 100A at 277/480V AC, suitable for high power applications.
- Body Material: Constructed from impact-resistant Zytel 801 nylon with PBT housing grade.
- Environmental Protection: Meets IP68/IP69K ratings per IEC 60309-1 standards.
- Cord Mounting: Cord mounted configuration accommodates cable diameters from 1.065 in to 1.94 in.
- Conductor Range: Accepts wire sizes from #3 AWG to #1/0 AWG using screw terminals.
- Operating Temperature Range: Rated for operation within a temperature range of -40°C to +75°C (without impact).
- Features: Includes color-coded housings for identification, self-closing gasketed cover, shrouded contacts, spring-loaded cap, and grounded construction following IEC conventions.
- Standards Compliance: CSA Certified LR280C
- UL Classified to IEC 60309-1/-2
- UL E146033 listed product.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.20
- Package Width: 6.30
- Package Height: 5.40
- Package Weight: 5.00
