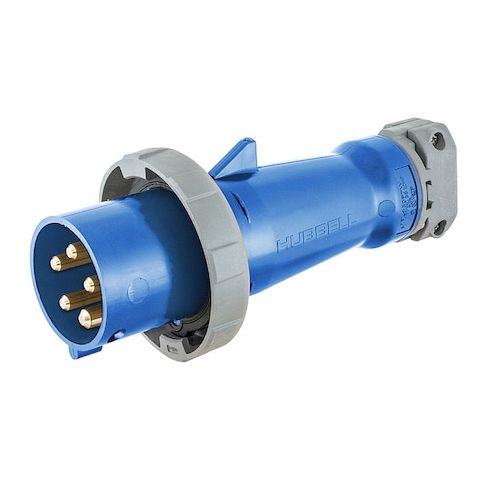

Watertight Pin & Sleeve Plug, 20 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue MPN:HBL520P9W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Plug is a reliable and durable watertight electrical connector designed for use in industrial and commercial environments. Suitable for high-ampacity connections, this 4-pole, 5-wire plug is rated for 20A at 120/208V AC three-phase power. Its non-metallic housing and pressure terminal screws ensure secure wire connections, while its gasketed sealing ring provides IP67-rated protection against water and dust. Ideal for applications such as construction sites, manufacturing facilities, and outdoor events, this plug offers a secure and reliable connection in harsh environments. Its CSA certification and UL classification ensure compliance with industry standards.
Top product features:
- The HUBBELL IEC Pin and Sleeve Plug is rated for 20 amps at 120/208V AC, three-phase power.
- The device uses pressure terminal screws for secure wire connections.
- The plug has a gasketed sealing ring for watertight construction, IP67-rated.
Top product applications:
- Industrial control panels
- Commercial power distribution systems
- Portable equipment such as generators and welders
The HUBBELL IEC Pin and Sleeve Plug is a watertight electrical connector suitable for use in industrial and commercial environments requiring high ampacity connections. This 4-pole, 5-wire plug is rated for 20A at 120/208V AC three-phase power, with a non-metallic housing made from Zytel 801 nylon and composite materials. The device uses pressure terminal screws for secure wire connections and accommodates cable diameters from 0.33 to 0.83 inches.
Key Features of the HUBBELL IEC Pin and Sleeve Plug:
- Current/Voltage Rating: Rated for 20 amps at 120/208V AC, three-phase
- Poles/Wires: Four poles, five wires with grounded IEC style
- Watertight Construction: Gasketed sealing ring
- IP67-rated
- Material: Constructed from Zytel 801 nylon
- impact resistant
- Cord Mounting: Compatible with various portable cord types using screw terminals
- Temperature Range: Operates between -40°C to +75°C continuous temperature
- Pins: Solid one-piece pins machined from solid brass with raised collar around each phase pin
- Wire Size Compatibility: Accepts #14 AWG to #10 AWG conductors (maximum wire size of 10 AWG)
- Standards Compliance: CSA Certified File LR280C
- UL Classified to IEC 60309-1 & -2
- UL1682 & UL1686C2 standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.20
- Package Width: 4.10
- Package Height: 3.90
- Package Weight: 1.20
