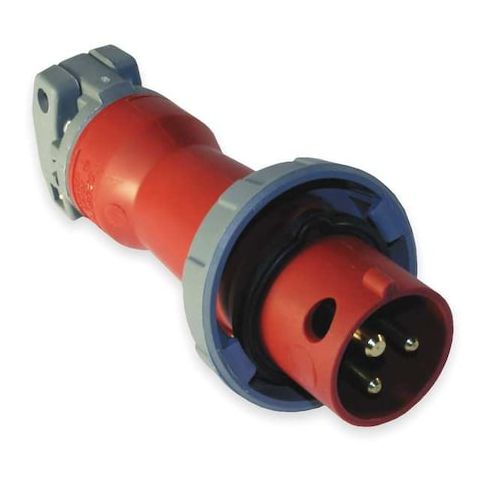

Watertight Pin & Sleeve Plug, 30 A, 480V AC, Single Phase, 2 Pole, IEC Grounding, Red MPN:HBL330P7W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Plug is a rugged and reliable electrical connector designed for high-ampacity connections in demanding environments. Rated for 30 amps at 480V AC single phase, it features a watertight construction and IP67 ingress protection, making it ideal for use in harsh weather conditions or in areas where moisture is present. This plug is suitable for a range of applications, including outdoor events, construction sites, and industrial settings, and is compatible with a variety of portable cord types. Its CSA and UL certification ensure safe and reliable operation, making it a trusted choice for professionals.
Top product features:
- Watertight Construction: Gasketed sealing ring
- IP67 ingress protection
- Screw terminals compatible with #12–#8 AWG wire sizes
Top product applications:
- High-power equipment such as pumps, compressors, and generators
- Industrial machinery like motors, gearboxes, and conveyor systems
- Heavy-duty electrical devices such as welding machines, cranes, and hoists
The HUBBELL IEC Pin and Sleeve Plug is a rated for 30 amps at 480V AC single phase electrical connector designed for high ampacity connections in demanding environments. This 30A, 480V AC plug features a rugged, non-metallic Zytel 801 nylon housing and is compatible with a range of portable cord types. It utilizes pressure terminal screws and accommodates wire sizes from #12 AWG to #8 AWG. The device meets CSA Standard C22.2 No. 182.1 and UL Classified to IEC60309-1 standards.
Key Features of the HUBBELL IEC Pin and Sleeve Plug:
- Current/Voltage Rating: Rated for 30 amps at 480V AC single phase
- Watertight Construction: Gasketed sealing ring
- IP67 ingress protection
- Material: Body made from Zytel 801 nylon composite
- Cord Mounting: For cord-mounted installation
- supports cable diameters from 0.5 in to 1.25 in
- Wire Connection Type: Screw terminals compatible with #12–#8 AWG wire sizes
- Pole/Wire Configuration: Two poles, three wires (grounded)
- Operating Temperature Range: -40°C to +75°C continuous operation without impact
- Horsepower Rating: Rated up to 7-1/2 hp
- Standards Compliance: Meets CSA Standard C22.2 No.182.1, UL Listed File E146032, UL Classified to IEC60309-1 requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.70
- Package Width: 4.50
- Package Height: 9.30
- Package Weight: 1.46
