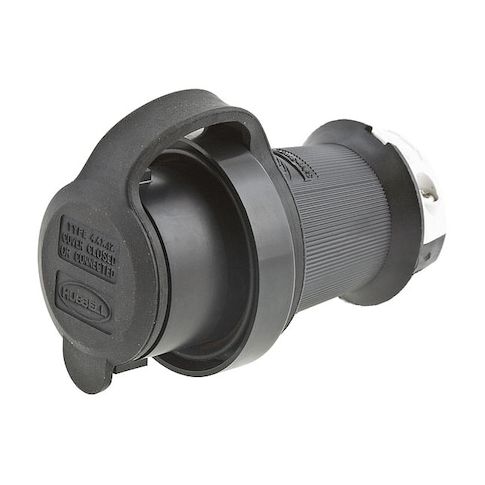

Watertight Locking Plug, L16-30P, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL2731SW
Free Shipping
In Stock
The HUBBELL 30A Watertight Twist-Lock Plug (L16-30P) is a rugged and reliable solution for industrial and commercial settings, providing a secure connection in harsh environments. Rated for 30 amps and 480V AC, this three-phase, four-wire device is designed to withstand moisture, dust, and weather. Its watertight design and IP66 rating ensure protection against the elements, while its brass blades and contacts ensure a secure connection. Suitable for use in applications such as manufacturing, construction, and outdoor equipment, this plug offers a durable and reliable solution for demanding environments.
Top product features:
- Rated for 30 amps and 480V AC, this three-phase, four-wire device features a rated IP66 per IEC standard to protect against moisture, dust, and weather during use.
- Accepts cables from 0.35 in to 1.15 in diameter.
- Supports wire sizes from 16 AWG to 8 AWG via screw terminals.
Top product applications:
- Industrial settings for use with 480V AC three-phase power
- Commercial settings for use with 480V AC three-phase power
- Outdoor applications where moisture and weather protection are required
The HUBBELL 30A Watertight Twist-Lock Plug (L16-30P) is a shrouded, industrial-grade locking plug intended for use in industrial and commercial settings. Rated for 30 amps and 480V AC, this three-phase, four-wire device features a rated IP66 per IEC standard to protect against moisture, dust, and weather during use. The plug features brass blades and contacts housed in impact-modified polybutylene terephthalate.
Key Features of the HUBBELL 30A Watertight Locking Plug:
- NEMA Configuration: L16-30P
- three poles, four wires
- Cord Size Compatibility: Accepts cables from 0.35 in to 1.15 in diameter
- Wire Size Range: Supports wire sizes from 16 AWG to 8 AWG via screw terminals
- Operating Temperature Range: -40°C to 75°C
- Housing Material: Impact modified PBT with clear polycarbonate retainer and stainless steel screws
- Resistance Properties: Chemical resistance, impact resistance, IP66 rating
- Flammability Rating: UL94 V-0 rated materials used throughout construction
- Standards Compliance: CSA Certified Type 4
- UL Listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.30
- Package Height: 3.60
- Package Weight: 0.70
