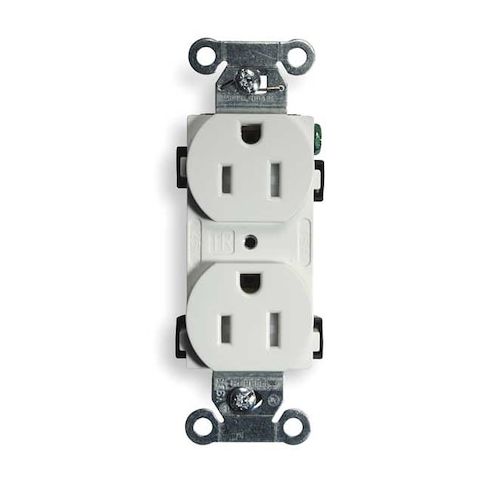

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:BR15WHITR
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle is a commercial-grade outlet designed for indoor use in a variety of settings, including offices, restaurants, and retail spaces. Its tamper-resistant design and smooth nylon face provide a safe and durable solution for high-traffic areas. With its ability to support both back and side wiring methods, this receptacle is easy to install and maintain. Rated for 15 amps at 125 volts AC, it's suitable for single-phase applications and can withstand harsh temperatures and dielectric voltage. Perfect for any commercial or industrial setting, this receptacle is a reliable choice for powering electrical devices.
Top product features:
- Tamper-Resistant: Built-in shutters are intended to reduce the risk of foreign object insertion.
- Supports both back and side wire connections using screw terminals.
- Grounded design complies with WC596G specifications.
Top product applications:
- Commercial office spaces
- Residential homes
- Industrial facilities
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R WH is a [Omit or replace with 'commercial grade' if verified by supplier] duplex outlet intended for indoor use. It features a smooth nylon face and wrap-around galvanized steel straps for durability. This receptacle supports both back and side wiring methods, accommodating #14 to #10 AWG copper conductors, and is rated for 15 amps at 125 volts AC with a NEMA 5-15R configuration.
Key Features of the HUBBELL - 15A Duplex Receptacle:
- Tamper-Resistant: Built-in shutters are intended to reduce the risk of foreign object insertion.
- Wiring Options: Supports both back and side wire connections using screw terminals.
- Material Construction: Nylon housing with brass triple wipe contacts
- galvanized steel mounting strap.
- Electrical Ratings: Rated for 15 A, 125 V AC
- maximum wattage of 1875 W
- suitable for single-phase applications.
- Grounding: Grounded design complies with WC596G specifications.
- NEMA Configuration: Standard NEMA 5-15R duplex straight blade layout.
- Certification & Standards: UL Listed (UL498), CSA Certified C22.2 No.42, NEMA WD-6 compliant.
- Operating Temperature Range: -40°C to +75°C (without impact)
- withstands dielectric voltage up to 2,000V minimum.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.40
- Package Width: 4.50
- Package Height: 2.50
- Package Weight: 1.85
