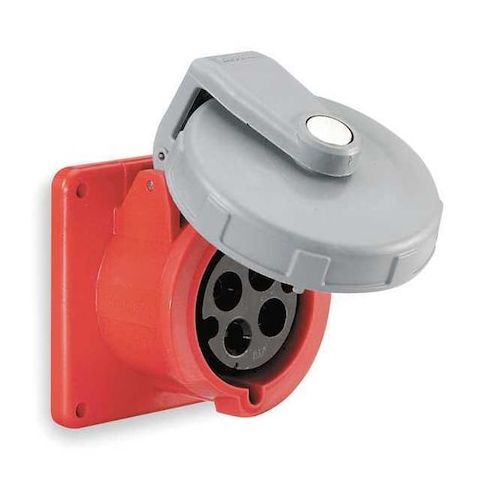

Watertight Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Red, NEMA 4X MPN:HBL430R7W

• The HUBBELL IEC Pin and Sleeve Receptacle is an electrical device rated for use in commercial and industrial applications where secure power connections are needed. Rated for 30A and 480V AC, this three-phase receptacle features a straight connection orientation and accommodates wire sizes from 12 to 8 AWG. Its construction includes a corrosion-resistant, impact-resistant housing with an insulated non-metallic body made of Zytel 101 nylon, constructed to withstand typical conditions encountered in specified environments. The unit meets IP68/IP69K ingress protection standards and NEMA Type 4X enclosure rating for resistance against water and dust.





  Key Features of the HUBBELL IEC Pin & Sleeve Receptacle:





  • Current/Voltage Rating: Rated for 30 amps at 480V AC, suitable for three-phase systems


  • Ingress Protection: IP68/IP69K rated
  • NEMA Type 4X enclosure provides watertight performance


  • Material Construction: Body, flange, and face are constructed from Zytel 101 nylon
  • retainer is high-impact thermoset
  • gasket is neoprene


  • Circuit Compatibility: Designed with three poles and four wires (grounded), unswitched ground style per IEC requirements


  • Temperature Range: Operates between -40°C to +75°C maximum temperature


  • Horsepower Rating: Suitable for circuits up to 15 hp as approved disconnecting means per NEC requirements


  • Cord Accommodation: Accepts cord sizes from minimum #6 AWG to maximum #1 AWG via screw terminals


  • Resistance Properties: Constructed from materials that meet corrosion resistance, impact resistance, and UL94 V-0 flammability rating


  • Mating Compatibility: Mates with existing installed base of IEC 60309-2 pin-and-sleeve devices


  • Certifications/Standards Met: CSA Certified LR280C
  • UL Listed under IEC60309-1/-2 standards (File E146033)
