MchIntrlkDvcFsd, 3P4W, 60A, 600AC250DC, 50hp MPN:HBL460MIFS2W
Out Of Stock

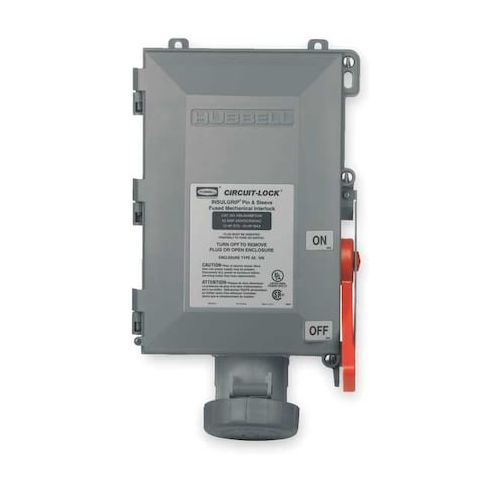

Protect your personnel and equipment with the HUBBELL Pin And Sleeve Interlock, 60A, Fused. This compact, non-metallic device combines a disconnect switch and pin-and-sleeve receptacle in a single unit, restricting plug removal when the switch is in the ON position. Suitable for indoor and outdoor use, it reduces the risk of accidental disconnection under load. Ideal for washdown environments, construction sites, and industrial settings, this interlock device features fuse protection, high-visibility handle, and IP66 rating for water and dust ingress protection. Its versatility and reliability make it a valuable addition to any electrical installation.
Top product features:
- Restricts plug removal when the switch is in the ON position, reducing the risk of accidental disconnection under load.
- Provides fuse protection with Class J fuses for added safety.
- Offers a high-visibility red handle with lockout capability for easy identification and secure operation.
Top product applications:
- Industrial Settings
- Construction Sites
- Marine Environments
The HUBBELL Pin And Sleeve Interlock, 60A, Fused is a mechanical interlock device that combines a disconnect switch and pin-and-sleeve receptacle in a compact non-metallic enclosure. It restricts plug removal when the switch is in the ON position, reducing the risk of accidental disconnection under load. The unit features fuse protection with Class J fuses and includes a high-visibility red handle with lockout capability. Its thermoplastic housing rated IP66 for water and dust ingress protection
- suitable for indoor/outdoor use.
Key Features of the HUBBELL Pin And Sleeve Interlock, 60A, Fused:
- Amperage/Voltage: Rated for 60A at 600V AC/250V DC
- Electrical Connection: Pin and sleeve configuration
- accepts plug number 5HJ29
- Fuse Protection: Integrated fused design using UL Listed Class J or CSA Certified HRCI-J fuses
- Enclosure Material: Thermoplastic VALOX base with stainless steel assembly screws
- UV stabilized materials
- Ingress Protection: IP66 rated for water and dust ingress protection
- suitable for washdown environments (Type 4X)
- Circuit Interrupting Capability: Rated to interrupt current up to its specified value
- Mechanical Endurance: Endurance rating: 10,000 cycles
- Operating Temperature Range: -40°C to +75°C
- Pole/Wire Configuration: 3 pole, 4 wire
- supports single or three phase circuits
- Cable Accommodation: Accepts #2 to #10 AWG copper wire only
- maximum wire size of 2 AWG
- Shaft Seal/Gaskets: Neoprene gaskets provide additional moisture resistance
- Mounting Hardware Included: Adjustable mounting feet provided for flexible installation options
Additional Information
- Country of Origin: IT
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.50
- Package Width: 12.20
- Package Height: 9.00
- Package Weight: 18.40
