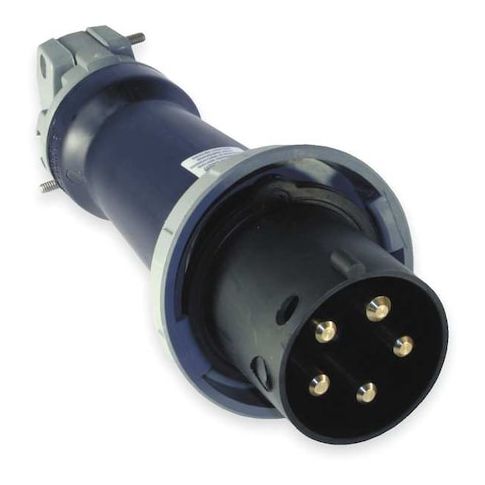

Watertight Pin & Sleeve Plug, 60 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black MPN:HBL560P5W
Free Shipping
In Stock
Protect your equipment and ensure reliable power with the HUBBELL IEC Pin and Sleeve Plug. Designed for use in industrial environments, this plug withstands harsh conditions and meets strict safety standards. Rated for 60A and 600V AC, it accommodates three-phase power with four poles and five wires, supporting wire sizes from #8 AWG to #2 AWG. Ideal for use with motors up to 25 hp, this plug provides IP67 ingress protection and is CSA certified for use in a variety of applications, including manufacturing, construction, and oil and gas operations.
Top product features:
- Rated for use in industrial environments requiring up to 60A and 600V AC.
- Accommodates three-phase (3Y) power with four poles and five wires, supporting wire sizes from #8 AWG to #2 AWG.
- Gasketed sealing ring provides IP67 ingress protection for watertight design.
Top product applications:
- Industrial Power Distribution
- Heavy-Duty Machinery
- Commercial Electrical Installations
The HUBBELL IEC Pin and Sleeve Plug is a rated for use in industrial environments requiring up to 60A and 600V AC. Rated for 60A and up to 600V AC, this plug includes a Zytel 801 nylon housing with a gasketed sealing ring for IP67 ingress protection. It accommodates three-phase (3Y) power with four poles and five wires, supporting wire sizes from #8 AWG to #2 AWG.
Key Features of the HUBBELL IEC Pin and Sleeve Plug:
- Current/Voltage Rating: Rated for 60 A at 347/600V AC
- Body Material: Constructed from impact-resistant Zytel 801 nylon composite
- Watertight Design: Gasketed sealing ring provides IP67 ingress protection
- Cord Type Compatibility: Compatible with portable cords within specified cable diameter range
- cord mounted design supports cable diameters from 0.5 in to 1.45 in
- Wire Connection: Pressure terminal screws accommodate #8 AWG to #2 AWG conductors
- Operating Temperature Range: -40°C to +75°C (non-impact conditions)
- Standards Compliance: CSA Standard C22.2 No.182.1, UL Classified to IEC60309-1, UL Listed (File E146032)
- Phase/Wiring Configuration: Three-phase Y configuration
- four poles, five wires
- grounded per IEC conventions
- Horsepower Rating: Rated for use with motors up to 25 hp
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.70
- Package Width: 5.60
- Package Height: 5.00
- Package Weight: 2.45
