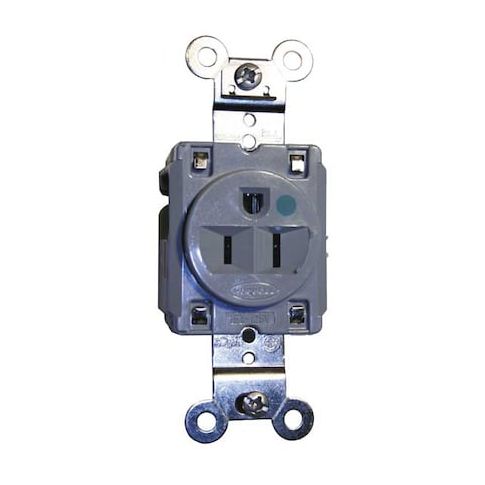

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8310GY
Free Shipping
In Stock
The HUBBELL 5-20R Hospital Grade Receptacle is a rugged and reliable electrical outlet designed for heavy-duty applications in hospitals, medical facilities, and other high-traffic areas. With its grounding design and four-point grounding system, this receptacle ensures safe and consistent power delivery. Suitable for back and side wiring, it features screw terminals and a nickel-plated brass integral ground strap for added durability. Its flush-mount design and impact-resistant housing make it ideal for high-traffic areas, while its certification to CSA, NEMA, and UL standards ensures compliance with industry regulations. Perfect for new construction or renovations, this receptacle provides peace of mind in critical care environments.
Top product features:
- Flush mount design allows for a seamless integration into existing surfaces.
- Supports both back and side wiring with screw terminals for flexibility and ease of installation.
- Four-point grounding system provides low-resistance ground continuity for enhanced safety and reliability.
Top product applications:
- Hospital-grade applications requiring heavy-duty performance
- Commercial settings that demand high reliability and safety
- Industrial environments where durable and rugged electrical outlets are necessary
The HUBBELL 5-20R Hospital Grade Receptacle is a single, flush-mount electrical outlet rated for 20A and 125V AC. Suitable for hospital-grade applications requiring heavy-duty performance, this receptacle features a grounding design and supports both back and side wiring with screw terminals. It meets UL requirements for hospital devices
- includes a nickel-plated brass integral ground strap and bypass contact design.
Key Features of the HUBBELL 5-20R Hospital Grade Receptacle:
- Amperage/Voltage: Rated for 20A at 125V AC
- NEMA Configuration: Single outlet, NEMA 5-20R
- Mounting Type: Flush mount
- includes mounting hardware
- Wiring Method: Back and side wired screw terminals accommodate #12–#10 AWG copper wire
- Contact Material: Brass contacts with nickel-plated bypass contact design intended to maintain consistent contact pressure
- Grounding System: Four-point grounding system designed to support low-resistance ground continuity
- Material Construction: Nylon/reinforced thermoplastic polyester housing
- deep face housing constructed from materials rated as impact resistant
- Operating Temperature Range: -40°C to +75°C (without impact)
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 9.40
- Package Height: 4.40
- Package Weight: 2.40
