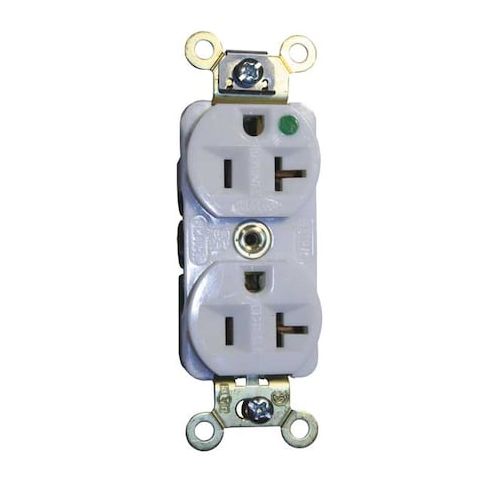

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8300ILW
Free Shipping
In Stock
The HUBBELL 20A Duplex Receptacle is a reliable and durable electrical outlet designed for high-use areas in demanding indoor environments. Its compact design and impact-resistant face make it suitable for hospitals, commercial spaces, and heavy-duty applications. With a four-point grounding system and nickel-plated brass contacts, this receptacle ensures safe and reliable operation. Its LED illumination and ability to accommodate #12 to #10 AWG wire via screw terminals make it a versatile choice for various applications, including hospitals, offices, and restaurants, where power and safety are essential.
Top product features:
- The receptacle features a four-point grounding system intended to support ground continuity.
- The receptacle accepts #12–#10 AWG stranded or solid copper wire via back or side wired screw terminals.
- The receptacle is illuminated by two LEDs for visibility.
Top product applications:
- Extra heavy duty hospital grade
- High-use areas
- Demanding indoor environments
The HUBBELL 20A Duplex Receptacle 125VAC 5-20R WH is a traditional duplex electrical outlet rated as extra heavy duty and hospital grade. It features a compact design with an impact-resistant face and is rated for use in demanding indoor environments requiring specified durability and grounding features. The receptacle supports both back and side wiring methods using screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire.
Key Features of the HUBBELL 20A Duplex Receptacle:
- Amperage/Voltage: Rated for 20 A at 125 VAC
- NEMA Configuration: 5-20R, standard duplex type
- Application Environment: Extra heavy duty hospital grade
- suitable for high-use areas
- Grounding: Four-point grounding system includes a four-point grounding system intended to support ground continuity
- Contact Material: Nickel-plated brass contacts designed to maintain contact integrity during operation
- Impact Resistance: Deep face design with finder groove style supports resistance to impact-related damage
- Illumination: Entire face illuminated by two LEDs for visibility
- Circuit Interrupting Capability: certified for interruption of current at the stated rated load
- tested to withstand dielectric voltage of minimum 2,000V
- Wire Accommodation: Accepts #12–#10 AWG stranded or solid copper wire via back or side wired screw terminals
- Operating Temperature Range: -40°C (without impact) up to maximum continuous +75°C (167°F)
- Standards Compliance: CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, NEMA WD-6, UL Listed to UL498 File E2186
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.80
- Package Height: 1.50
- Package Weight: 0.25
