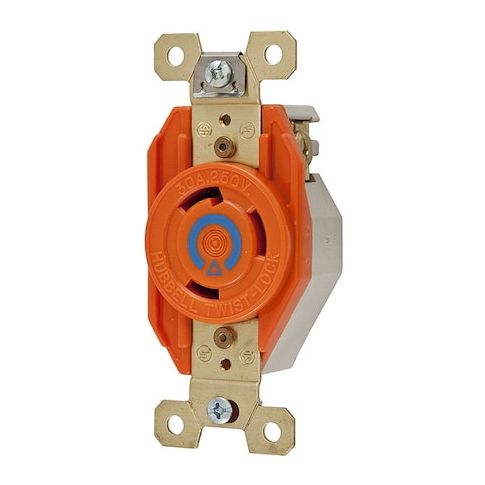

Locking Receptacle, L6-30R, 30 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:IG2620
Free Shipping
In Stock
The HUBBELL 30A Isolated Ground Locking Receptacle is designed for industrial-grade use in indoor, dry locations, providing a reliable and safe connection for high-amperage applications. Its isolated ground system ensures dedicated grounding circuits, while its flush-mount design and twist-lock mechanism make it ideal for applications requiring a secure and tamper-proof connection. Suitable for use in industrial, commercial, and manufacturing settings, this receptacle is perfect for powering equipment, machinery, and tools that require a high level of electrical safety and reliability. Its durable construction and high-impact resistance ensure a long-lasting performance.
Top product features:
- Isolated Ground: Insulation barrier construction isolates ground contact from mounting strap for dedicated grounding circuits.
- Amperage/Voltage Rating: Rated for 30 A and 250V AC operation.
- High-impact nylon face and housing with brass contacts constructed with materials rated for impact resistance.
Top product applications:
- Industrial Panelboards
- Heavy Duty Machinery
- Electrical Enclosures
The HUBBELL 30A Isolated Ground Locking Receptacle is an Industrial-grade device rated for use in indoor, dry locations. This flush-mount receptacle features an isolated ground system to separate the grounding contacts from the mounting strap and conventional grounding, suitable for applications requiring isolated grounding. It accommodates two poles and three wires with a twist-lock mechanism, rated for 30 amps at 250V AC.
Key Features of the HUBBELL 30A Isolated Ground Locking Receptacle:
- Isolated Ground: Insulation barrier construction isolates ground contact from mounting strap for dedicated grounding circuits.
- Amperage/Voltage Rating: Rated for 30 A and 250V AC operation
- NEMA L6-30R configuration.
- Material Construction: High-impact nylon face and housing with brass contacts
- constructed with materials rated for impact resistance.
- Wiring Capability: Accepts #16 – #8 AWG solid or stranded copper wire via screw terminals
- supports both back and side wiring.
- Mounting Type: Flush mount installation with included screw hardware
- single gang application.
- Operating Temperature Range: -40°C to +75°C (without impact)
- maximum continuous use at 75°C.
- Certifications & Standards: Listed to UL 498, CSA C22.2 No.42, Federal Specification W-C-596
- flammability rating V2 or better per UL94/CSA standards.
- Dielectric Strength & Performance: Rated to withstand a dielectric voltage of 2,000V
- listed as current interrupting at the specified rating.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.60
- Package Height: 4.20
- Package Weight: 0.01
