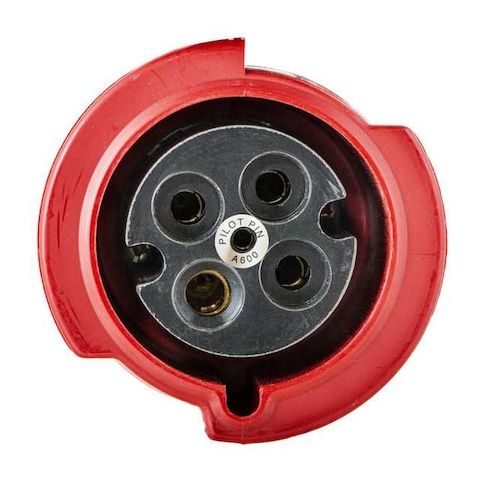

Watertight Pin & Sleeve Connector, 100/125 A, 240/415V AC, Three Phase, 4 Pole, IEC Grounding, Red MPN:HBL5100C6WP
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Connector is a rugged and reliable solution for industrial applications requiring high current capacity. Suitable for use in wet environments, this IP68/IP69K rated connector features a non-metallic housing made from Zytel 801 nylon and PBT, ensuring secure connectivity and resistance to corrosion. With a current rating of up to 125 amps and compatibility with three-phase power at 240/415VAC, this connector is ideal for use in various industries, including manufacturing, construction, and oil and gas. Its durable design and versatility make it an excellent choice for applications where reliability and safety are paramount.
Top product features:
- Watertight Construction: IP68/IP69K ingress protection suitable for use in wet environments.
- Accommodates wire sizes from #3 AWG to #1/0 AWG for flexible connectivity options.
- Self-closing gasketed spring-loaded cap provides secure and reliable sealing.
Top product applications:
- Industrial Power Distribution Systems
- Heavy-Duty Electrical Equipment
- Marine and Offshore Electrical Systems
The HUBBELL IEC Pin and Sleeve Connector, 125A, 415V is a IP68/IP69K ingress protection rated connector suitable for use in industrial environments requiring high current capacity. It features a rugged non-metallic housing made from Zytel 801 nylon and PBT, constructed from Zytel 801 nylon and PBT. This connector is compatible with three-phase power at 240/415VAC with a current rating of up to 125 amps and accommodates wire sizes from #3 AWG to #1/0 AWG. The device uses pressure terminal screws for secure connectivity and includes color-coded housing.
Key Features of the HUBBELL IEC Pin & Sleeve Connector:
- Current Rating: Rated for 100/125 A at 240/415V AC (three-phase)
- Watertight Construction: IP68/IP69K ingress protection
- suitable for wet environments
- Material: Insulated non-metallic body made from Zytel 801 nylon
- thermoplastic construction
- Cord Compatibility: Compatible with a range of portable cord types
- cord-mounted design fits cable diameters from 1.065 in to 1.94 in
- Wire Accommodation: Accommodates #3 AWG to #1/0 AWG wire sizes
- five-wire configuration (4 poles + ground)
- Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use
- Circuit Interrupting Capability: Certified for current interrupting
- Identification Features: Color-coded housing by voltage
- product ratings marked on device housing
- Cover Type: Self-closing gasketed spring-loaded cap
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.30
- Package Width: 6.10
- Package Height: 5.60
- Package Weight: 5.05
