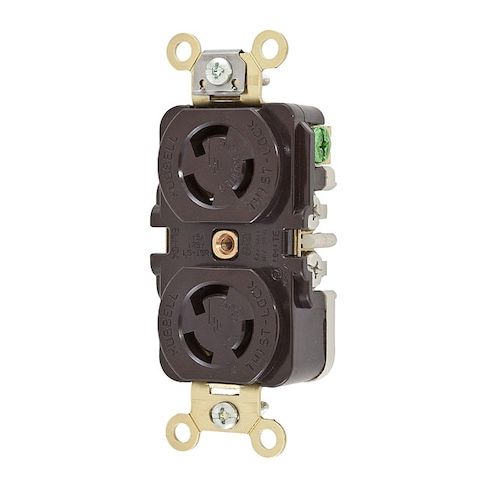

Duplex Locking Receptacle, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Brown MPN:HBL4700
Free Shipping
In Stock
The HUBBELL 15A Duplex Locking Receptacle is a reliable and secure power connection solution for indoor industrial applications. Designed for dry environments, this twist-lock receptacle features reinforced thermoplastic construction and all-brass contacts for consistent conductivity. With a wide operating temperature range and screw terminals accepting wire sizes from 18 AWG to 10 AWG, it's perfect for locations requiring a power connection. Suitable for applications such as manufacturing facilities, offices, and warehouses, this receptacle offers a secure and convenient power connection solution. Its durable design and compliance with CSA and UL standards make it a trusted choice for industrial power needs.
Top product features:
- Twist-lock design helps maintain secure plug retention.
- Reinforced thermoplastic construction provides impact resistance.
- Single piece, all brass contacts ensure consistent conductivity.
Top product applications:
- Industrial settings such as factories and warehouses
- Construction sites and job sites
- Dry environments where reliable power connections are required
The HUBBELL 15A Duplex Locking Receptacle (L5-15R BN) is a flush mount, twist-lock receptacle intended for indoor industrial applications. It features reinforced thermoplastic construction and all brass contacts with brass contacts for electrical connectivity to provide secure electrical connections for single-phase, 2-pole, 3-wire systems rated at 125V AC and up to 15 amps. This duplex locking receptacle includes mounting hardware and a cover, making it suitable for dry locations in locations requiring a power connection where reliable power connection is required.
Key Features of the HUBBELL 15A Duplex Locking Receptacle:
- NEMA Configuration: L5-15R
- twist-lock design helps maintain secure plug retention.
- Material Construction: Reinforced thermoplastic base with nylon housing
- impact resistant.
- Contact Material: Single piece, all brass contacts for consistent conductivity.
- Wire Connection Type: Screw terminals accept wire sizes from 18 AWG to 10 AWG (#14 AWG recommended).
- Operating Temperature Range: -40°F to 167°F (maximum continuous temperature of 75°C without impact).
- Mounting Type: Flush mount with included mounting strap and hardware
- non-flanged design.
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed.
- NEMA Enclosure Rating/IP Rating: NEMA Type 1 / IP20
- intended for indoor use in dry environments only.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.50
- Package Height: 4.20
- Package Weight: 0.30
