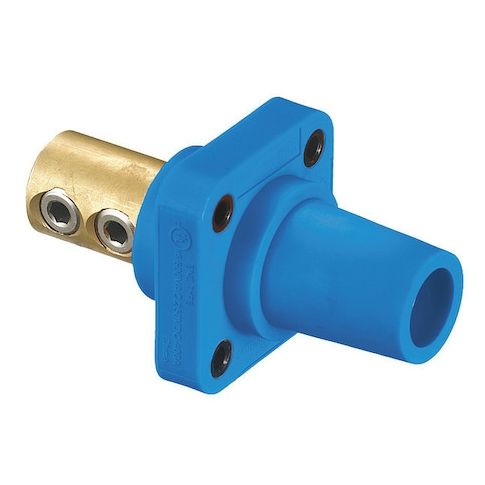

Receptacle, Female, Blu, 4-4/0, 400AC/DC MPN:HBLFRBL
Free Shipping
In Stock
The HUBBELL Receptacle, Female, Blue, 4-4/0, 400AC/DC is a reliable and versatile solution for applications requiring high-amperage connections. Rated for up to 400 amps, this receptacle is suitable for use in a variety of settings, including industrial, commercial, and heavy-duty applications. Its double set screw terminals and brass contacts ensure secure and reliable connections, while its thermoplastic elastomer housing provides durability and resistance to harsh environments. This receptacle is ideal for use in NEMA Types 12K, 3R, and 4X enclosures, making it a great choice for applications where safety and reliability are paramount.
Top product features:
- Amperage Rating: Rated for up to 400 A (AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Double set screw terminals provide secure and reliable connections
Top product applications:
- Industrial electrical distribution systems
- Heavy-duty machinery installations
- High-power equipment control panels
The HUBBELL Receptacle, Female, Blue, 4-4/0, 400AC/DC is a single pole panel mount receptacle rated for use in applications requiring up to 400 amps. It features a female double set screw terminal connection and is compatible with Series 16 devices. This receptacle is rated for operation at up to 400 amps, with voltage ratings of up to 600V AC or 250V DC. The housing is constructed from thermoplastic elastomer
- intended for indoor dry locations unless otherwise protected.
Key Features of the HUBBELL Receptacle, Female, Blue, 4-4/0, 400AC/DC:
- Amperage Rating: Rated for up to 400 A (AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Cable Range: Accepts wire sizes from #4 AWG to #4/0 AWG
- Terminal Connection Type: Double set screw terminals
- Mounting Style: Panel mount with through hole mounting hardware
- NEMA Enclosure Ratings: Suitable for NEMA Types 12K, 3R, and 4X enclosures
- Contact Material: Brass contacts provide reliable conductivity
- Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed/cUL Listed requirements
- UL Enclosure Types 3R/4X/12 compliant
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 0.75
