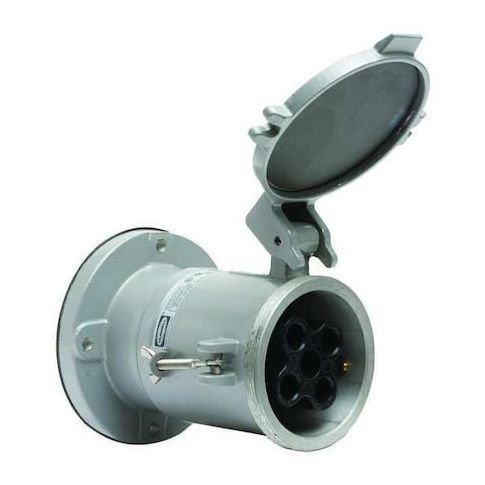

Pin & Sleeve Receptacle, 200 A, 600V AC/250V DC, Three Phase, 4 Pole, Style 1 Grounding, Gray MPN:HBL5200RS1W
Free Shipping
In Stock
The HUBBELL Insulgrip Pin & Sleeve Receptacle is a rugged and reliable solution for high-capacity power distribution applications in harsh environments. Designed for industrial electrical connections, this 200A, 4-pole receptacle offers watertight and dust-tight characteristics, making it ideal for use in outdoor and indoor settings where exposure to moisture and debris is a concern. With its epoxy painted aluminum body and thermoplastic flange, this receptacle provides durable performance in demanding environments, ensuring safe and efficient power distribution in applications such as industrial manufacturing, construction, and oil and gas exploration.
Top product features:
- Rated for 200A at up to 600V AC (250V DC), rated for high-capacity power distribution applications
- Meets NEMA 3, 4, and 4X as well as IP66 ratings for moisture resistance and impact resistance
- Features a spring-loaded cap with neoprene sealing glands for dust-tight and watertight requirements
Top product applications:
- Industrial Electrical Connections
- Heavy-Duty Power Distribution
- High-Capacity Power Distribution
The HUBBELL Insulgrip Pin & Sleeve Receptacle is a 200A, 4-pole, 5-wire device designed for industrial electrical connections for use in applications where watertight and dust-tight characteristics are specified. Constructed with an epoxy painted aluminum body and thermoplastic flange, it features a metallic housing with a nylon shroud for added durability in demanding environments. This receptacle is compatible with the Insulgrip series and uses pressure terminal screws for designed to maintain electrical connection integrity.
Key Features of the HUBBELL Insulgrip Pin & Sleeve Receptacle:
- Current/Voltage Rating: Rated for 200A at up to 600V AC (250V DC), rated for high-capacity power distribution applications as specified by the manufacturer.
- Environmental Protection: Meets NEMA 3, 4, and 4X as well as IP66 ratings
- constructed with materials that meet requirements for moisture resistance and impact resistance per applicable standards
- moisture resistant and impact resistant construction.
- Material Construction: Epoxy painted aluminum housing with thermoplastic flange
- includes UV stabilized components.
- Connection Type: Straight orientation with screw terminals supporting wire sizes from 2 AWG to 250 KCMIL (maximum wire size of 4/0 AWG).
- Covers & Seals: Spring-loaded cap with neoprene sealing glands designed to meet specified dust-tight and watertight requirements.
- Grounding Style: Style 1 grounding configuration
- includes five ground connections.
- Operating Temperature Range: Rated for operation between -40°C and +75°C without impact (-25°C minimum with impact).
- Certifications & Standards: CSA Certified to C22.2 No.182.1, UL Listed per UL Standard 1682, Type 4X enclosure rating
- flammability rated UL94 V-0.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 6 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 11.00
