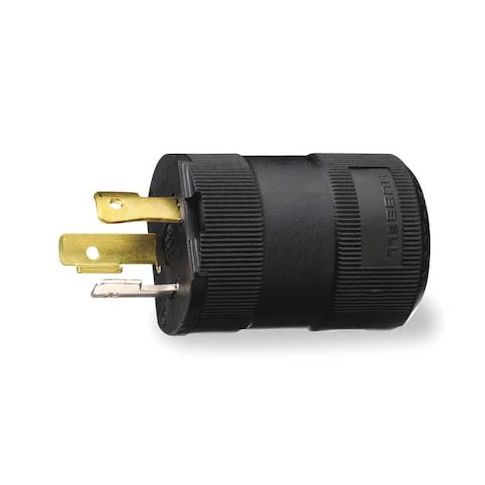

Locking Plug, L6-15P, 15 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black MPN:HBL4573VBK
Free Shipping
In Stock
The HUBBELL 15A Locking Plug (L6-15P) is a reliable and secure solution for industrial electrical connections. Designed for use in indoor dry locations, this two-pole, three-wire plug features a nylon housing with cord grips to maintain connection integrity and withstand specified impacts. With a rated voltage of 250V AC single phase and amperage of 15A, it's suitable for a wide range of applications, including machinery, equipment, and power distribution systems. Its locking mechanism provides added security, making it an ideal choice for industries where electrical safety and reliability are paramount.
Top product features:
- It features a nylon housing that is rated to withstand specified impacts
- It has cord grips that help maintain connection integrity and minimize strain on wiring terminals
- It has a polarized design with a grounding feature
Top product applications:
- Industrial Settings
- Portable Cord Applications
- Dry Indoor Locations
The HUBBELL 15A Locking Plug (L6-15P) is a two-pole, three-wire plug intended for use in industrial settings where secure electrical connections are required. It features a nylon housing that is rated to withstand specified impacts, with cord grips help maintain connection integrity and minimize strain on wiring terminals. This locking plug is compatible with portable cords within the specified diameter range and is suitable for indoor dry locations.
Key Features of the HUBBELL 15A Locking Plug:
- Amperage/Voltage Rating: Rated for 15 A at 250V AC single phase
- Cord Accommodation: Accepts cord diameters from 0.220 in to 0.660 in (#18 AWG to #12 AWG stranded copper wire)
- Material Construction: Nylon body is rated for chemical exposure as per manufacturer specifications
- Screw Terminals: Hinged wiring style with captive multiple drive assembly screws
- NEMA Configuration: L6-15P
- polarized design with grounding feature
- Performance Ratings: Withstands dielectric voltage of at least 2,000V
- maximum continuous operating temperature of 75°C, minimum -40°C (without impact)
- Standards Compliance: Certified to CSA C22.2 No.42, UL 498, Federal Specification W-C-596
- IP Rating: IP20 – suitable for indoor dry conditions unless protected by additional means
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.70
- Package Height: 1.70
- Package Weight: 0.10
