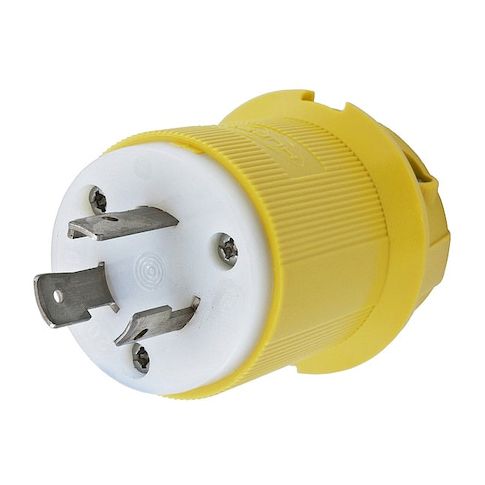

Locking Plug, L6-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Yellow MPN:HBL23CM21

• The HUBBELL 20A Marine Twist-Lock Plug (L6-20P) is a locking plug suitable for industrial and marine applications. It features a ribbed nylon housing that provides grip

• the material is rated for impact and chemical resistance per manufacturer specifications. The plug accommodates cord sizes from 0.360" to 0.930", supports wire sizes from #16 AWG to #8 AWG stranded copper, and operates at 250V AC with a maximum current rating of 20 amps.




  Key Features of the HUBBELL - 20A Marine Twist-Lock Plug L6-20P:





  • Housing Material: Ribbed nylon housing
  • material rated for impact and chemical resistance per manufacturer specifications


  • Cord Range: Accepts cords from 0.360" to 0.930" diameter
  • compatible with listed portable cord types as specified by the manufacturer


  • Wire Accommodation: Compatible with #16 AWG to #8 AWG stranded copper wire using screw terminals


  • NEMA Configuration: L6-20P (2-pole, 3-wire), rated for single-phase operation at up to 250V AC/20A


  • Corrosion Resistance: constructed from corrosion-resistant materials as specified by the manufacturer


  • Cord Grip Design: Cord grip design intended to reduce strain on terminations during use


  • Dust Shield: Integral dust shield helps protect wiring chamber against contaminants
