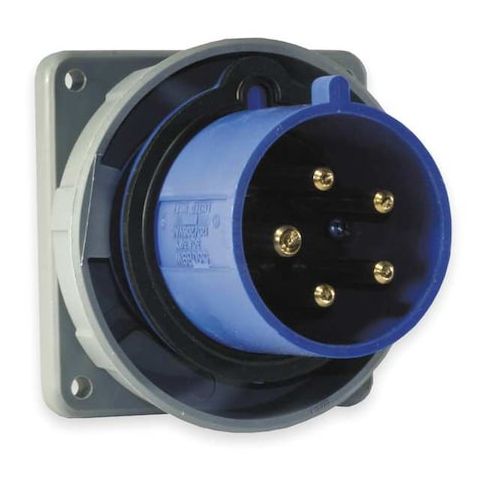

Watertight Pin & Sleeve Inlet, 100 A, 120/208V AC, Three Phase, 4 Pole, IEC Grounding, Blue MPN:HBL5100B9W

• The HUBBELL IEC Pin and Sleeve Inlet, 100A, 120/208V is an electrical inlet rated for 100A, 120/208V AC, suitable for industrial applications. This device constructed with a flanged body made from Zytel 101 nylon and polybutylene terephthalate housing

• rated IP67 for protection against water ingress. It is rated for three-phase operation at 100 amps and 120/208 volts AC, utilizing screw terminal connections to accommodate wire sizes from #3 AWG to #1/0 AWG.




  Key Features of the HUBBELL IEC Pin & Sleeve Inlet:





  • Current Rating: Rated for up to 100 A at 120/208V AC in three-phase systems.


  • Watertight Construction: Gasketed sealing ring and IP67 rating provide protection against water ingress
  • includes neoprene gasket material.


  • Material Information: Body and flange constructed from Zytel 101 nylon
  • retainer is thermoset material.


  • Wire Accommodation: Accepts conductor sizes ranging from #3 AWG to #1/0 AWG via pressure terminal screws.


  • Temperature Range: Rated for operation between -40°C to +75°C.


  • Circuit Protection: Insulated body with thermoplastic insulation rated at dielectric strength up to 3000V AC
  • UL94 V-0 flammability rating.


  • Design Features: Raised collar surrounds each phase pin
  • shrouded design as specified in IEC standards
  • grounded per IEC standards.


  • Certifications: CSA Certified (File LR280C), UL Listed (File E146032), classified under IEC 60309-1/-2 standards.
