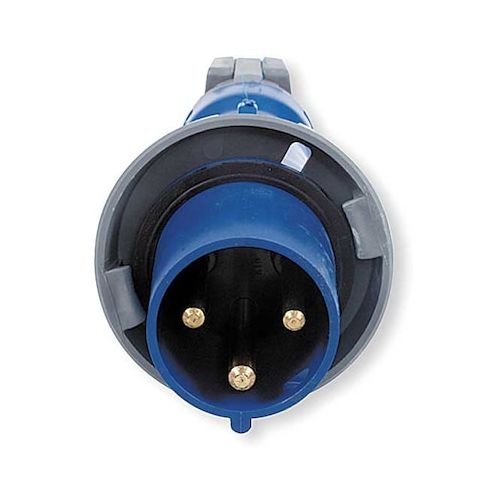

Watertight Pin & Sleeve Plug, 30 A, 250V AC, Single Phase, 2 Pole, IEC Grounding, Blue, NEMA 4X MPN:HBL330P6W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Plug is a reliable and durable watertight electrical connector designed for industrial and commercial environments. Suitable for applications requiring 30A and 250V AC single-phase power, this plug features a rugged construction with impact-resistant and moisture-resistant properties, ensuring safe and efficient operation in harsh conditions. Its compact design and wide cable accommodation make it ideal for use in control panels, equipment enclosures, and other industrial settings where electrical connections are exposed to moisture and extreme temperatures. The plug's CSA certification and UL listings ensure compliance with industry standards, providing peace of mind for engineers and technicians.
Top product features:
- Watertight construction with a gasketed sealing ring and IP67 rating
- Accepts cable diameters from 0.5 in to 1.25 in
- Operates between -40°C to +75°C
Top product applications:
- Outdoor Lighting Fixtures
- Industrial Control Panels
- Marine Electrical Systems
The HUBBELL IEC Pin and Sleeve Plug is a watertight electrical connector suitable for industrial and commercial environments. This plug features a 2-pole, 3-wire configuration, rated for 30A and 250V AC single-phase power. Constructed with a rugged Zytel 801 nylon body and non-metallic housing, it features impact-resistant and moisture-resistant construction. The device includes grounded connections using the IEC grounding style and accommodates wire sizes from 12 AWG to 8 AWG.
Key Features of the HUBBELL IEC Pin & Sleeve Plug:
- Current/Voltage Rating: Rated for 30 amps at 250V AC single phase
- Watertight Construction: Gasketed sealing ring with IP67 rating
- NEMA Type 4X enclosure
- Material: Body made from Zytel 801 nylon
- non-metallic housing
- Cable Accommodation: Accepts cable diameters from 0.5 in to 1.25 in
- Temperature Range: Operates between -40°C to +75°C
- Wire Connection Type: Screw terminals support wire sizes from #12 AWG (min) to #8 AWG (max)
- Pins & Wires: Two poles, three wires
- shrouded design
- Standards Compliance: CSA Certified C22.2 No.182.1
- UL E146032
- UL IEC60309-1 listed
- Resistance Properties: Impact resistant, moisture resistant, watertight construction
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.40
- Package Height: 9.30
- Package Weight: 1.40
