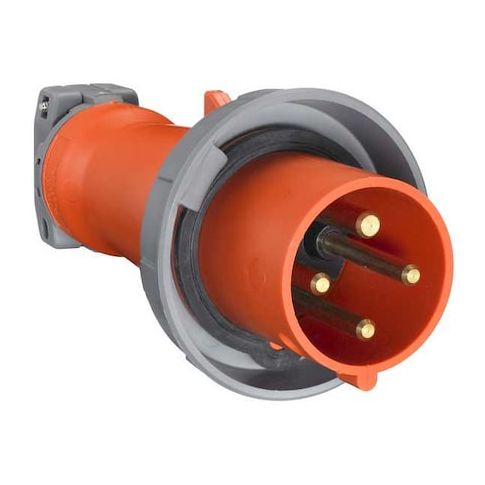

Watertight Pin & Sleeve Plug, 20 A, 125/250V AC, Single Phase, 3 Pole, IEC Grounding, Orange MPN:HBL420P12W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Plug is a rugged and reliable solution for industrial and commercial applications, rated for 20A at 125/250V AC single phase. Its watertight design with a gasketed sealing ring ensures durability and resistance to harsh environments, making it suitable for use in areas exposed to water and dust. This plug is ideal for use in power distribution systems, panelboards, and machinery, and can accommodate cable diameters from 0.33 in to 0.83 in, supporting wire sizes from #14 AWG to #10 AWG. Its compact size and IP67 rating make it a versatile and dependable choice.
Top product features:
- Rated for 20 amps at 125/250V AC single phase
- Features a rugged non-metallic housing made from Zytel 801 nylon
- Uses screw terminals for conductor attachment
Top product applications:
- Industrial Control Panels
- Commercial Lighting Fixtures
- Heavy-Duty Power Tools
The HUBBELL IEC Pin and Sleeve Plug is a suitable for industrial and commercial environments. This 3-pole, 4-wire plug is rated for 20A at 125/250V AC and features a rugged non-metallic housing made from Zytel 801 nylon. It uses screw terminals for conductor attachment and includes a gasketed sealing ring
- rated IP67.
Key Features of the HUBBELL IEC Pin & Sleeve Plug:
- Current/Voltage Rating: Rated for 20 amps at 125/250V AC single phase
- Pole/Wire Configuration: 3 poles, 4 wires
- grounded with IEC grounding style
- Body/Housing Material: Housing material: Zytel 801 nylon
- Watertight Design: Gasketed sealing ring
- rated IP67
- NEMA Enclosure Rating: NEMA 4X enclosure rating
- Cable Accommodation: Accepts cable diameters from 0.33 in to 0.83 in
- supports wire sizes from #14 AWG to #10 AWG
- Temperature Range: Operates between -40°C and +75°C maximum temperature
- Horsepower Rating: Maximum circuit horsepower rating: 2 hp
- Shrouded Pins: Shrouded pins
- Wire Connection Type: Uses screw terminals for conductor attachment
- Standards Compliance: CSA Certified C22.2 No.182.1, UL E146032, UL IEC60309-1 listed product
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.30
- Package Width: 4.10
- Package Height: 3.90
- Package Weight: 1.00
