Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:DR20TR

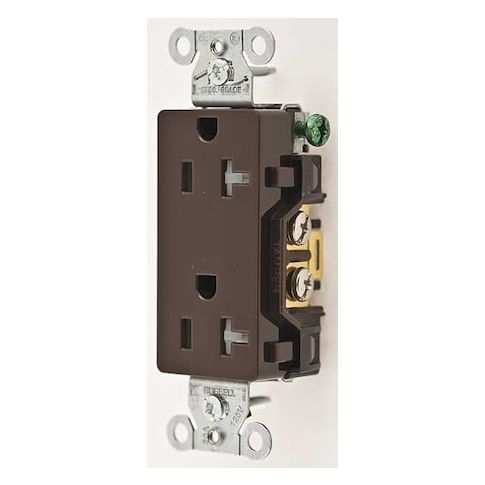

• The HUBBELL 5-20R Decorator Duplex Receptacle is a flush mount electrical outlet rated for 20A and 125V AC, suitable for commercial and industrial indoor applications. This tamper-resistant receptacle with a decorator face style features a smooth decorator face style and accommodates both back and side wiring methods with screw terminals. It is grounded, polarized, and suitable for single-phase applications requiring a duplex outlet configuration.





  Key Features of the HUBBELL 5-20R Decorator Duplex Receptacle:





  • Amperage/Voltage: Rated for 20A, 125V AC


  • NEMA Configuration: 5-20R duplex outlet


  • Tamper Resistant: Includes internal shutters


  • Mounting Type: Flush mount
  • includes mounting hardware


  • Nylon housing with brass power contacts


  • Wiring Method: Supports both back and side wire connections (#12–#10 AWG copper)


  • Certification & Standards: UL Listed (File E2186), CSA Certified C22.2 No.42, NEMA WD-6 compliant


  • Operating Temperature Range: -40°F to 167°F (maximum continuous temperature rise of 30°C at full load)


  • Grounding: Grounded with #8-32 brass ground screw
  • includes grounding staple
