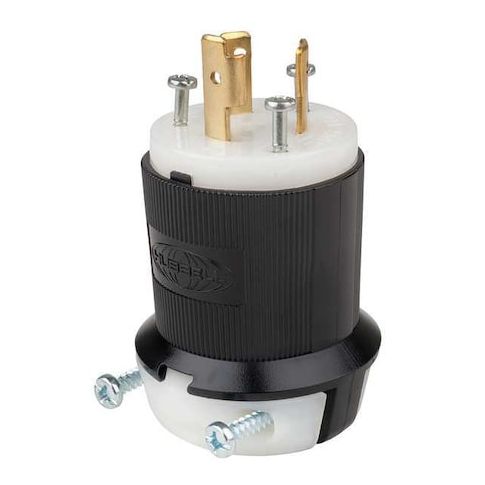

Locking Plug, L6-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL2321
Free Shipping
In Stock
The HUBBELL 20A Twist-Lock Plug (L6-20P) is a reliable and durable locking plug designed for industrial settings. Rated for 20 amps and 250V AC, this plug features a ribbed nylon housing and is suitable for applications up to 2 hp at specified voltage/current. Its polarized design assists with alignment during installation, while the integral dust shield and clear funnel-shaped entry ensure a secure and efficient connection. Ideal for use in dry, indoor environments, this plug is perfect for industrial equipment, machinery, and electrical panels, providing a safe and reliable connection.
Top product features:
- Ribbed nylon housing for durability and resistance to wear and tear
- Brass blades for secure and reliable connections
- Clear, funnel-shaped wire entry for easy and strain-free wire installation
Top product applications:
- Industrial electrical panels
- Machine tools
- Generators
The HUBBELL 20A Twist-Lock Plug (L6-20P) is a locking plug intended for use in industrial settings. Rated for 20 amps and 250V AC, this plug features a ribbed nylon housing.
Key Features of the HUBBELL L6-20P Locking Plug:
- Blade Material: Brass blades
- Housing Material: Nylon construction
- Cord Grip Design: Designed to reduce strain on terminations
- Wire Entry: Clear, funnel-shaped entry
- Dust Shield: Integral dust shield
- Flammability Rating: Meets UL94 HB requirements
- Temperature Range: Rated for operation up to 75°C
- minimum -40°C without impact
- Horsepower Rating: Suitable for applications up to 2 hp at specified voltage/current
- Connection Orientation & Style: Straight connection with standard wiring style using screw terminals.
- IP Rating & Use Conditions: IP20 rating
- suitable for dry, indoor environments only.
- Pole/Wire Configuration: Two poles, three wires
- polarized design assists with alignment during installation.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 4.10
- Package Weight: 0.30
