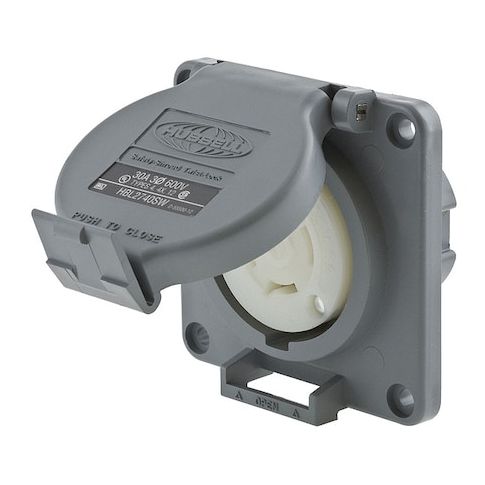

Watertight Flanged Locking Receptacle, L17-30R, 30 A, 600V AC, Three Phase, 3 Pole, Flush Mount MPN:HBL2740SW
Free Shipping
In Stock
The HUBBELL 30A Watertight Flanged Locking Receptacle is designed for use in harsh environments requiring watertight electrical connections. Suitable for applications in food processing, pharmaceutical, and marine industries, this receptacle provides protection against moisture and harsh conditions while maintaining a secure connection. Its three-pole, four-wire configuration and 600V AC rating make it ideal for use in three-phase systems. The device's locking cover and IP69K/NEMA 4X/12 enclosure rating ensure reliable performance in extreme temperatures and wet conditions, making it a reliable choice for use in outdoor or indoor areas where exposure to water or chemicals is a concern.
Top product features:
- Provides a three-pole, four-wire configuration rated for 600V AC and 30 amps
- Includes a locking cover to help maintain the connection
- Constructed with materials rated as moisture resistant and watertight per product specifications
Top product applications:
- Industrial settings where moisture and harsh conditions are present
- Marine environments where electrical connections need to be watertight
- Outdoor areas where exposure to weather and moisture is a concern
The HUBBELL 30A Watertight Twist-Lock Receptacle is a flanged locking receptacle intended for use in environments requiring watertight electrical connections. It features a three-pole, four-wire configuration rated for 600V AC and 30 amps, with a flush mount design appropriate for use in specified operating conditions. The device provides an IP69K and NEMA 4X/12 enclosure rating, providing protection against moisture and harsh conditions while in use or closed.
Key Features of the HUBBELL 30A Watertight Flanged Locking Receptacle:
- Current/Voltage Rating: Rated for 30A at 600V AC
- NEMA Configuration: L17-30R (3 pole, 4 wire)
- Enclosure Ratings: IP69K
- NEMA Type 4, 4X, and 12
- Operating Temperature Range: -40 to 75°C (-40 to 167°F)
- Housing Material: High-impact Valox thermoplastic with gray finish
- Cord Size Compatibility: Accepts wire sizes from 16 AWG to 8 AWG
- Contact Material: Brass contacts with screw terminal connections
- Special Feature: Includes locking cover to help maintain the connection
- Resistance Properties: Constructed with materials rated as moisture resistant and watertight per product specifications
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.90
- Package Width: 3.30
- Package Height: 4.20
- Package Weight: 0.65
