Locking Plug, Non-NEMA, 50 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White MPN:CS6365C
Free Shipping
In Stock

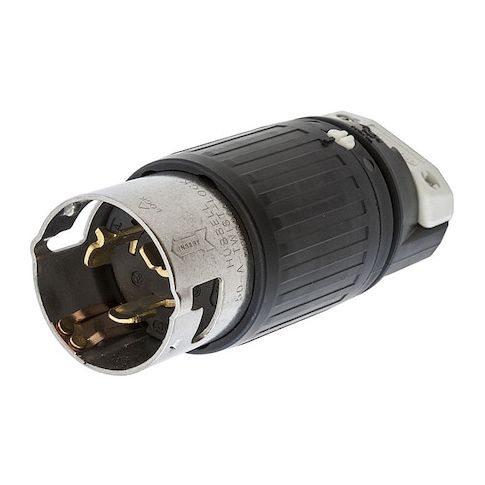

The HUBBELL 50A Twist-Lock Plug is a reliable and secure solution for industrial applications requiring a twist-lock connection. Rated for 50 amps at 125/250V AC, this locking plug features a 3-pole, 4-wire configuration and is designed for use in harsh environments. With its nylon housing and external cord clamp, this plug provides impact resistance and easy cable management. Suitable for use with listed portable cords and stranded copper wire, it's ideal for applications such as manufacturing, construction, and oil and gas industries. Its CSA and UL certification ensures compliance with industry standards, making it a trusted choice for professionals.
Top product features:
- The HUBBELL 50A Twist-Lock Plug features a twist-lock mechanism with a 3-pole, 4-wire configuration and is rated for 50 amps at 125/250V AC.
- The plug has nylon housing designed to provide impact resistance.
- The plug supports #10 AWG to #6 AWG stranded copper wire via screw terminals.
Top product applications:
- Industrial Power Distribution Systems
- Heavy-Duty Machinery and Equipment
- Outdoor Power Generation and Distribution
The HUBBELL 50A Twist-Lock Plug is a locking plug rated for use in industrial environments requiring a twist-lock connection. It features a twist-lock mechanism with a 3-pole, 4-wire configuration and is rated for 50 amps at 125/250V AC. The plug has nylon housing designed to provide impact resistance and includes an external cord clamp.
Key Features of the HUBBELL - 50A Twist-Lock Plug:
- Amperage/Voltage Rating: Rated for 50 A at 125/250V AC single phase
- Configuration: Locking plug with 3 poles and 4 wires
- grounded design
- Housing Material: Nylon housing designed to provide impact resistance
- Cable Range: Accepts cable diameters from 0.830" to 1.250"
- Cord Type Compatibility: Compatible with listed portable cords within the specified range
- Wire Size Accommodation: Supports #10 AWG to #6 AWG stranded copper wire via screw terminals
- Operating Temperature Range: Maximum continuous temperature of 75°C
- minimum -40°C (without impact)
- NEMA Configuration: Non-NEMA twist-lock style with polarized connection orientation
- Standards Compliance: Certified to CSA C22.2 No.42 and UL Listed to UL498 standards
- Chemical Resistance & Flammability: Materials meet UL94 HB flammability rating
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.60
- Package Width: 2.60
- Package Height: 7.00
- Package Weight: 1.26
