Pin & Sleeve Receptacle, 60/100 A, - Phase, NEMA 4X MPN:MB601002W

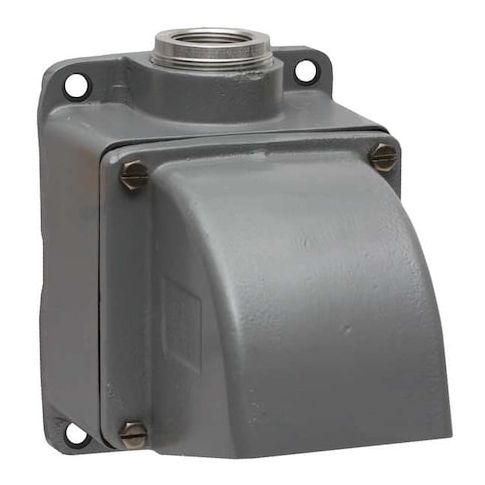

• The HUBBELL 4-Way Angle Back Box is a metallic back box designed for use with Insulgrip Pin and Sleeve devices rated at 60 or 100 amps. Constructed from cast aluminum, this surface-mount enclosure includes internal space for wiring and is compatible with grounding to metallic conduit. It features a 15-degree angled design with a dead end hub entry, designed for through-hub cable installation.





  Key Features of the HUBBELL 4-Way Angle Back Box:





  • Current Rating: Rated for operation with devices specified at 60 or 100 amps


  • Box Design: Cast aluminum construction
  • dead end type with a single gang and accepts one device


  • Cable Entry: Through a 1-1/4" NPT hub (dead end style)


  • Angle: Box and hub are set at a 15-degree angle


  • Compatibility: Designed for Insulgrip Pin & Sleeve Devices


  • NEMA Enclosure Rating: NEMA 4X rated enclosure


  • IP Rating: IP67 rated enclosure


  • Temperature Range: Operating temperature range: -40°C to +75°C


  • Flammability Rating: UL94-5VA and V-0 classification


  • Impact Resistance: Meets UL746C requirements for mechanical durability


  • Includes mounting screws for installation
  • overall dimensions are approximately 9.8" L x 7.1" H x 6.7" W
