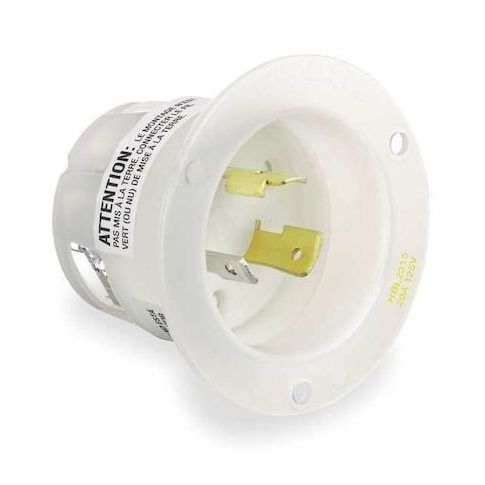

Flanged Locking Inlet, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals, White MPN:HBL2315
Free Shipping
In Stock
The HUBBELL 20A Flanged Twist-Lock Inlet is a robust and reliable solution for industrial environments requiring high-performance electrical connections. Suitable for indoor dry locations, this device features a twist-lock mechanism and a 2-pole, 3-wire configuration, rated for 20 amps at 125V AC. Its impact-resistant thermoplastic construction and steel flange ensure durability, while backwired screw terminals support a range of drivers. Ideal for applications such as manufacturing, warehousing, and data centers, this inlet provides a secure and efficient way to connect electrical equipment, reducing downtime and increasing productivity.
Top product features:
- Twist-lock design for secure and easy connection/disconnection
- Accepts #16 AWG to #8 AWG solid or stranded copper wire for flexible wire accommodation
- Backwired screw terminals support slotted, Phillips, and Robertson drivers for convenient installation
Top product applications:
- Industrial Panel Boards
- Factory Floor Power Distribution
- Machine Tool Power Distribution
The HUBBELL 20A Flanged Twist-Lock Inlet (L5-20P WT) is a flanged locking inlet suitable for use in industrial environments requiring robust performance. It features a twist-lock mechanism with a 2-pole, 3-wire configuration and is rated for 20 amps at 125V AC. The device is constructed from impact-resistant thermoplastic materials with a nylon housing and steel flange, intended for use in indoor dry locations. Backwired terminations feature backwired screw terminals compatible with slotted, Phillips, and Robertson drivers.
Key Features of the HUBBELL - 20A Flanged Twist-Lock Inlet:
- Amperage/Voltage: Rated for 20 A, 125V AC single phase
- NEMA Configuration: L5-20P plug pattern
- twist-lock design
- Material Construction: Thermoplastic elastomer body, nylon housing, steel flange
- Wire Accommodation: Accepts #16 AWG to #8 AWG solid or stranded copper wire
- backwired screw terminals support slotted, Phillips, and Robertson drivers
- Mounting Type: Flush mount with included mounting screws
- Environmental Suitability: Intended for indoor dry use
- IP44 ingress rating
- Performance Ratings: Dielectric voltage: 2,000V minimum
- maximum continuous operating temperature: 75°C
- minimum operating temperature: -40°C (no impact)
- Certifications & Standards: Listed to UL 498
- certified to CSA C22.2 No.42 and Federal Specification W-C-596
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.60
- Package Height: 3.00
- Package Weight: 0.20
