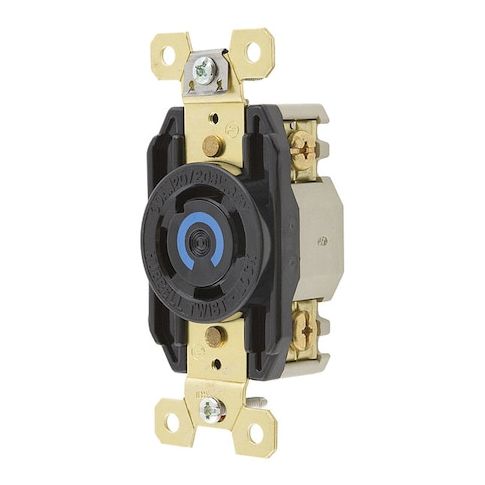

Locking Receptacle, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Screw Terminals MPN:HBL2750
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Receptacle L18-30R is a reliable and secure locking receptacle designed for industrial settings where power distribution and safety are paramount. Ideal for use in areas requiring three-phase 120/208V AC power, this receptacle features a twist-lock mechanism and 4-pole, 4-wire configuration. Its flush mount design and robust construction ensure a secure and easy installation process. Suitable for a wide range of applications, including manufacturing facilities, warehouses, and data centers, this receptacle provides a safe and reliable connection for power-hungry equipment, while meeting industry standards for safety and performance.
Top product features:
- Current and Voltage Rating: Rated for 30 amps at 120/208V AC, suitable for three-phase power distribution.
- NEMA Configuration: Polarized design helps align proper connection orientation.
- Wire Compatibility: Accepts wire sizes from #8 AWG to #16 AWG using screw terminals.
Top product applications:
- Industrial Settings Requiring Locking Receptacles
- Three-Phase Power Distribution in Commercial Buildings
- High-Temperature Applications Requiring a Wide Operating Temperature Range
The HUBBELL 30A Twist-Lock Receptacle L18-30R is a locking receptacle intended for use in industrial settings requiring locking receptacles. It features a twist-lock mechanism with a 4-pole, 4-wire configuration and is rated for three-phase 120/208V AC applications. The device has a flush mount design and includes mounting screws for installation in indoor, dry locations.
Key Features of the HUBBELL 30A Twist-Lock Receptacle L18-30R:
- Current and Voltage Rating: Rated for 30 amps at 120/208V AC, suitable for three-phase power distribution.
- NEMA Configuration: L18-30R with polarized design helps align proper connection orientation.
- Material Construction: Constructed with high-impact nylon face and thermoplastic housing
- includes brass contacts.
- Wire Compatibility: Accepts wire sizes from #8 AWG to #16 AWG using screw terminals
- supports both back and side wiring methods.
- Operating Temperature Range: Rated for operation between -40°F and 167°F (maximum continuous temperature of 75°C).
- Mounting Type: Flush mount with included hardware for installation using included hardware.
- NEMA Enclosure Rating/IP Rating: NEMA Type 1 enclosure, IP20 rated—intended for indoor use only.
- Standards Compliance: Meets UL 498, CSA C22.2 No.42, Federal Specification W-C-596 requirements.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.60
- Package Height: 4.10
- Package Weight: 0.10
