WTMchIntrlkDvcFsd, 3P4W, 60 A, 480V AC, 30hp MPN:HBL460MIF7W
Free Shipping
In Stock

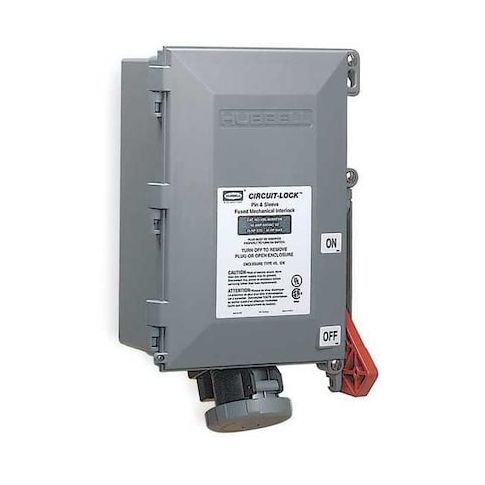

The HUBBELL Fused Circuit-Lock Mechanical Interlock is a versatile and reliable solution for electrical applications. This compact, non-metallic enclosure integrates a disconnect switch with a pin and sleeve receptacle, ensuring safe and efficient operation. The interlock mechanism prevents plug removal while the switch is in the ON position, reducing risks associated with live circuit disconnection. Suitable for use in industrial, commercial, and construction settings, this product provides a high level of safety and convenience, making it an ideal choice for applications where electrical safety is paramount, such as in manufacturing, oil and gas, and healthcare facilities.
Top product features:
- Integrated Class J fuse protection
- Fused mechanical interlock design prevents plug removal while the switch is in the ON position
- Spring-loaded Receptacle Cover forms a seal when cover is closed and locked, achieving IP66 rating
Top product applications:
- Industrial Control Panels
- Construction Sites
- Facilities Maintenance
The HUBBELL Fused Circuit-Lock® Pin and Sleeve Mechanical Interlock is a rated IP66 and NEMA 4X/12 for use in specified electrical applications. This unit integrates a disconnect switch with a pin and sleeve receptacle in a compact, non-metallic enclosure. The interlock mechanism includes an interlock mechanism that prevents plug removal while the switch is in the ON position, reducing risks associated with live circuit disconnection. A high-visibility red handle can be locked in the OFF position for lockout/tagout procedures
- enclosure door is equipped with a locking feature.
Key Features of the HUBBELL Fused Circuit-Lock® Pin and Sleeve Mechanical Interlock:
- Amperage/Voltage: Rated for 60 A at 480V AC (3-phase), rated for operation at 60 A, 480V AC (3-phase) as specified by manufacturer
- Fusing: Integrated Class J fuse protection
- Circuit Protection: Fused mechanical interlock design
- no circuit breaker included
- Plug Compatibility: Accepts Hubbell plug number 5Z917
- compatible with #8 AWG to #2 AWG wire sizes
- Enclosure Rating: Watertight (IP66), NEMA 4X/12 rated thermoplastic housing constructed from thermoplastic housing rated NEMA 4X/12
- see manufacturer specifications regarding material properties
- Operating Temperature Range: -40°C to +75°C continuous operation
- Cord Entry & Connectivity: Pressure terminal screws accommodate cord sizes from 10 to 2 AWG
- grounded brass contacts features grounded brass contacts as per product design specification
- Spring-loaded Receptacle Cover: Neoprene gasket forms a seal when cover is closed and locked (IP66 rating)
- Mounting Hardware Included: Adjustable external feet allow flexible installation options
- screw mounting hardware provided
- Safety Mechanisms: Plug-Check™ indicates presence of plug prior to operating switch
- handle may be secured in OFF position during lockout/tagout procedures
- removable door allows wiring access
- Certifications & Standards: CSA Certified, UL Listed for US and Canada
- meets UL94-5VA/V0 flammability requirements
Additional Information
- Country of Origin: IT
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.40
- Package Width: 12.30
- Package Height: 9.30
- Package Weight: 19.50
