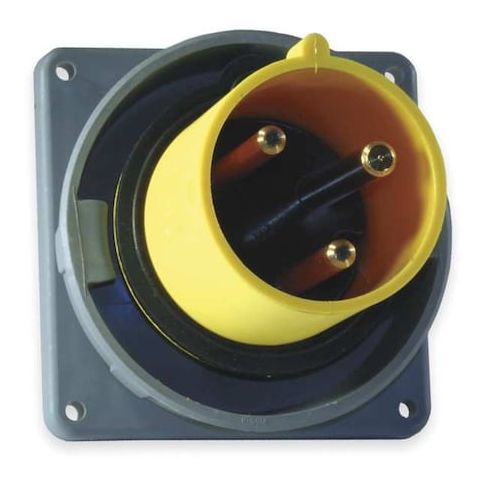

Watertight Pin & Sleeve Inlet, 60 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow MPN:HBL360B4W

• The HUBBELL IEC Pin and Sleeve Inlet is an electrical inlet rated for 60A and 125V AC, suitable for use in industrial settings. Rated for 60A and 125V AC, this single-phase device features a flanged design with screw terminal wire connections, suitable for #8 to #2 AWG conductors. Constructed from Zytel 101 nylon and thermoplastic materials

• rated IP67 per IEC 60309-1 for ingress protection. It provides moisture resistance and withstands harsh operating conditions with an IP67 ingress protection rating.




  Key Features of the HUBBELL IEC Pin and Sleeve Inlet:





  • Current/Voltage Rating: 60A, 125V AC single-phase


  • Gasketed sealing ring
  • rated IP67 per IEC 60309-1


  • Material: Body, flange, and housing made from Zytel 101 nylon
  • gasket material is neoprene


  • Wire Connection Type: Pressure terminal screws compatible with #8 to #2 AWG wire sizes


  • Flange Design: Flanged mounting with face diameter of 2.97 in and flange diameter of 3.46 in


  • Temperature Range: Rated for operation between -40°C to +75°C (no mechanical impact)


  • Circuit Protection: Raised collar surrounds each phase pin
  • insulated body construction


  • Standards Compliance: CSA Certified (File LR280C), UL Classified/IEC 60309-1 & -2, UL Listed (File E146032)


  • Horsepower Rating: Rated up to 2 hp applications
  • switch rated for current interrupting at full load
